Image Processing Module B (IPMB): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the FCIM. Vehicles Without: SYNC, Refer to: Front Controls Interface Module (FCIM) . Vehicles With: SYNC Without Touchscreen, Refer to: Front Controls Interface Module (FCIM) . Vehicles With: Touchscreen Display, Refer to: Front Controls Interface Module (FCIM) . Vehicles With: Sony Audio System, Refer to: Front Controls Interface Module (FCIM) .

2.

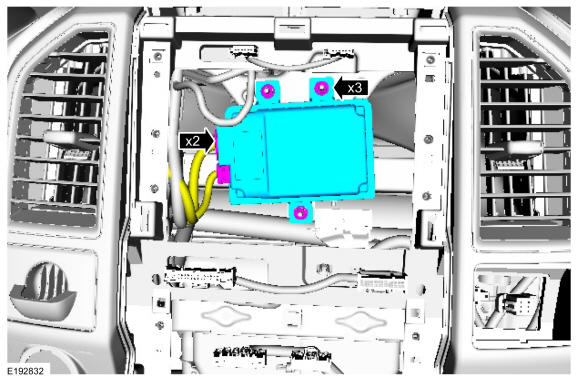

Remove the nuts, disconnect the electrical connectors and remove the IPMB.
