Front Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the radiator grille. Refer to: Radiator Grille
.

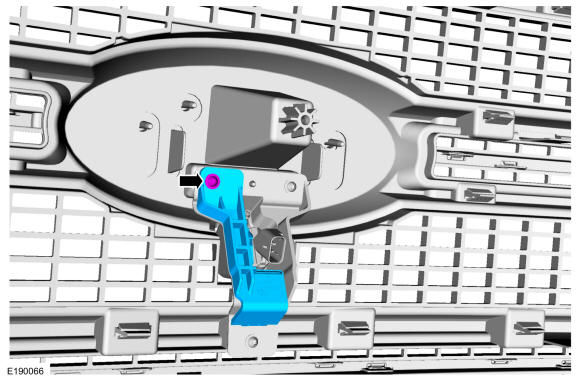

- 2.
Remove the screw and the front camera bracket.
 Courtesy of FORD MOTOR COMPANY
|

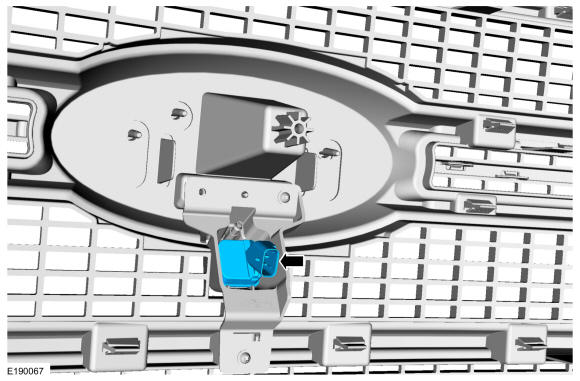

- 3.
Remove the front parking aid camera.
 Courtesy of FORD MOTOR COMPANY
|
