Component Location - Parking Aid Camera
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

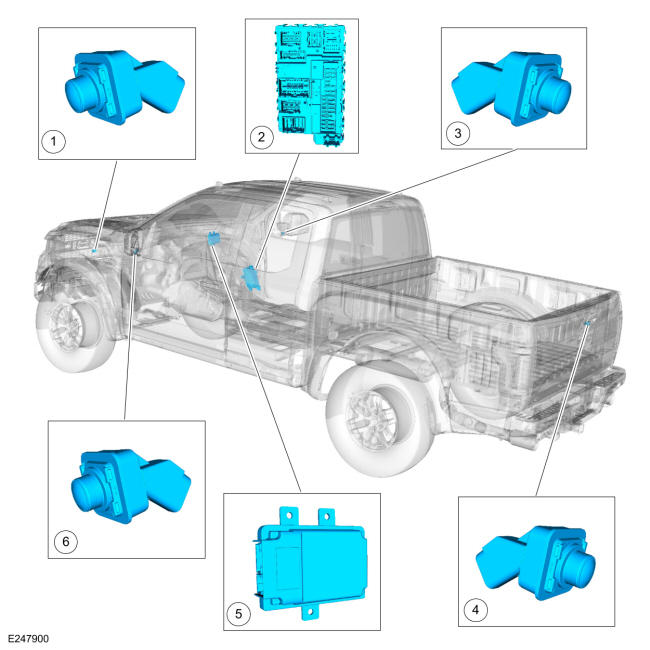

| Item | Description |
|---|---|
| 1 | Front parking aid camera (360 degree view camera system) |
| 2 | BCM (rear only parking aid camera system without PTBA) |
| 3 | RH side parking aid camera (360 degree view camera system) |
| 4 | Rear parking aid camera |
| 5 | IPMB (rear only parking aid camera system with PTBA or 360 degree view camera system) |
| 6 | LH side parking aid camera (360 degree view camera system) |
