Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

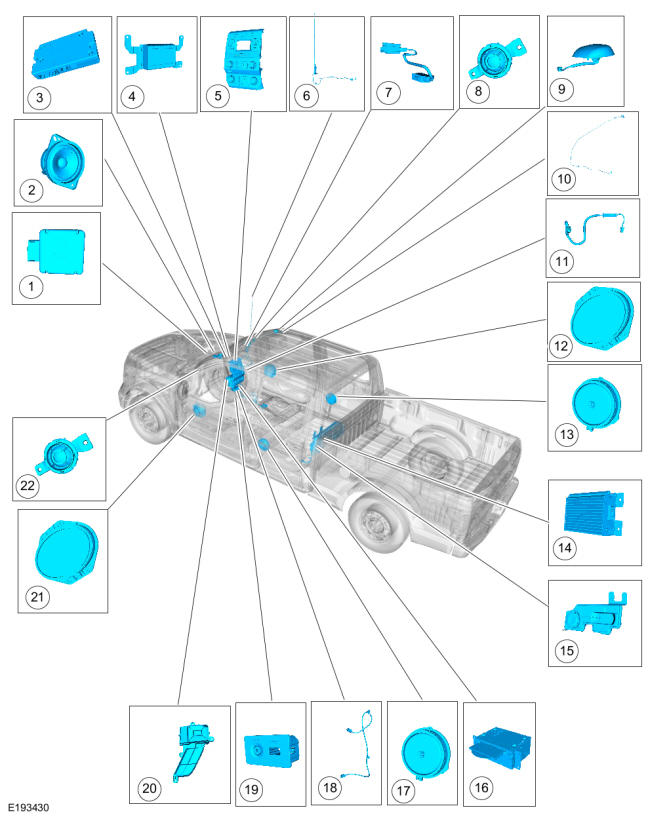

| Item | Description |
|---|---|
| 1 | GPSM (located in the top center area of the instrument panel) |
| 2 | Center instrument panel speaker (SuperCab and SuperCrew ® with satellite radio) |
| 3 | APIM (Located behind the FCDIM) |
| 4 | 4.2-inch (107 mm) FCDIM |
| 5 | FCIM |
| 6 | AM/ FM antenna/coaxial cable pigtail |
| 7 | SYNC ® microphone (located in the overhead console) |
| 8 | RHF A-pillar tweeter speaker |
| 9 | Satellite radio (if equipped) antenna |
| 10 | Upper and lower satellite radio (if equipped) antenna coaxial cables |
| 11 | AM/ FM coaxial cable jumper |
| 12 | RHF door midwoofer speaker |
| 13 | RHR door full-range speaker (SuperCab and SuperCrew ®) |
| 14 | KICKER ® subwoofer amplifier (if equipped) |
| 15 | KICKER ® subwoofer speaker and enclosure (if equipped) |
| 16 | ACM (contains CD player for vehicles with satellite radio - does not contain CD player for vehicles without satellite radio) |
| 17 | LHR door full-range speaker (SuperCab and SuperCrew ®) |
| 18 | USB cable (part of the 14401 harness) |
| 19 | Audio input jack and USB port/cable |
| 20 | RH steering wheel switches |
| 21 | LHF door midwoofer speaker |
| 22 | LHF A-pillar tweeter speaker |
