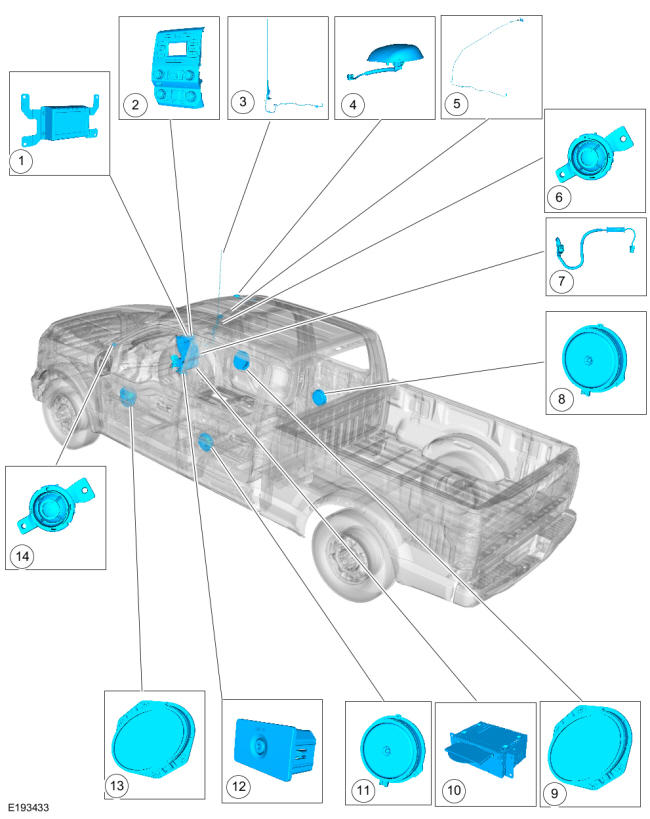

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | 4.2-inch (107 mm) FCDIM |
| 2 | FCIM |
| 3 | AM/ FM antenna/coaxial cable pigtail |
| 4 | Satellite radio (if equipped) antenna |
| 5 | Upper and lower satellite radio (if equipped) antenna coaxial cables |
| 6 | RHF A-pillar tweeter speaker |
| 7 | AM/ FM coaxial cable jumper |
| 8 | RHR door full-range speaker (SuperCab and SuperCrew ®) |
| 9 | RHF door midwoofer speaker |
| 10 | ACM (contains CD player for vehicles with satellite radio - does not contain CD player for vehicles without satellite radio) |
| 11 | LHR door full-range speaker (SuperCab and SuperCrew ®) |
