Front Seat Track: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

If equipped with manual lumbar, adjust the manual lumbar to the fully relaxed position.

Courtesy of FORD MOTOR COMPANY

2.

Remove the front seat cushion and cover as an assembly. Refer to: Front Seat Cushion Cover .

3.

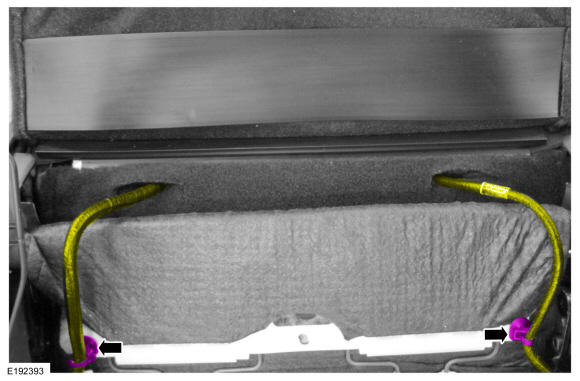

Release the wire harness retainer(s) and position the wire harness(es) aside.

Courtesy of FORD MOTOR COMPANY

4.

If equipped with a multi-contour seat, remove the front seat cushion adjuster. Refer to: Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats .

5.

NOTE: This step is only necessary when the passenger seat is equipped with an original equipment (OE) OCS.

Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor - Vehicles Without: Multi-Contour Seats . Refer to: Occupant Classification System (OCS) Sensor - Vehicles With: Multi-Contour Seats .

6.

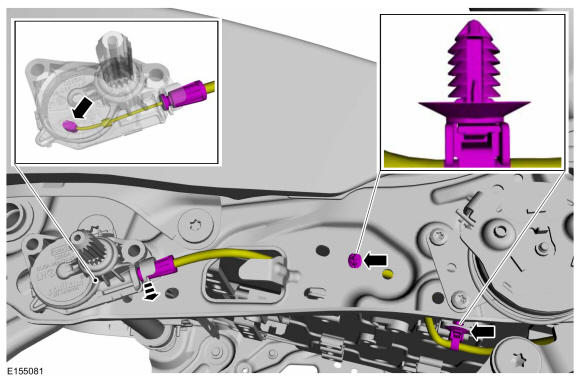

If equipped with manual lumbar, position the cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.

Courtesy of FORD MOTOR COMPANY

7.

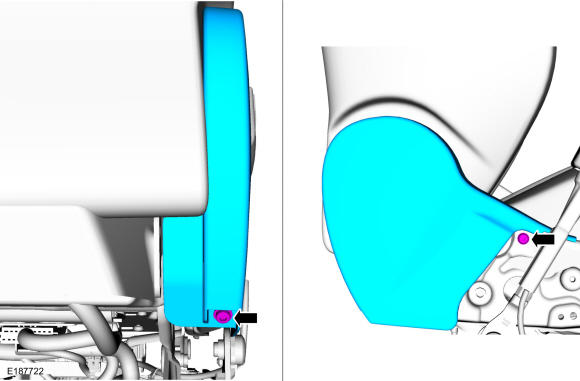

Remove the screws and the recline cover.

Courtesy of FORD MOTOR COMPANY

8.

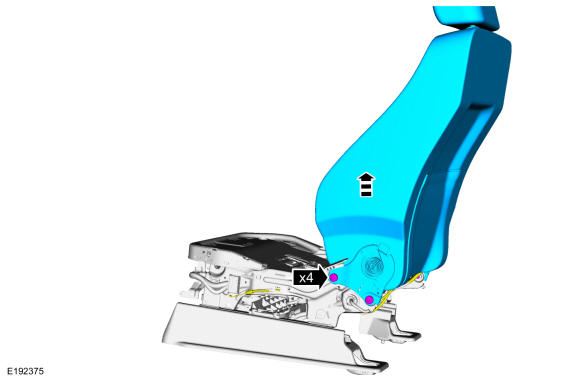

Remove the bolts and the front seat backrest.
Torque

: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

9.

Remove the safety belt buckle. Refer to: Front Seatbelt Buckle .
