Front Seat Track Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

1.

NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

Move the front seat to the full upward position.

GFD42932

Courtesy of FORD MOTOR COMPANY

2.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

3.

Disconnect the seat harness electrical connector(s).
1. 1.

  Detach the wire harness from the pin-type retainer.
1. 2.

  Release the locking tab(s) and rotate the position assurance lever(s).

GFD42992

Courtesy of FORD MOTOR COMPANY

4.

Detach the seat track wire harness connector retainer(s) from the seat track motor.

GFD43061

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Seat track components are removed for clarity.

Disconnect the seat track motor electrical connector, detach the wire harness retainers and position the wire harness aside.

GFD43062

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Seat track components and wiring harnesses are removed for clarity.

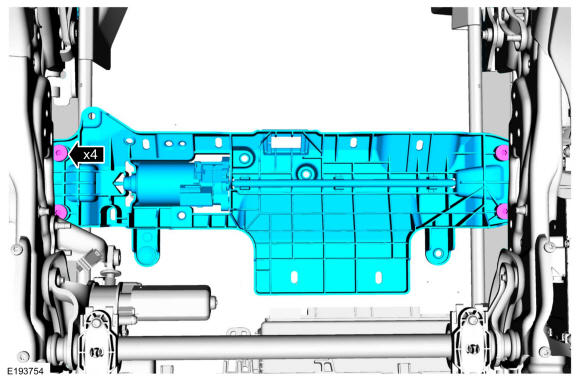

Remove the bolts and the seat track motor.

GFD43063

Courtesy of FORD MOTOR COMPANY
