Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

  1. 1.

    Remove the front seat. Refer to: Front Seat .

  1. 2.

    Adjust the manual lumbar to the fully relaxed position.
GFD43005Courtesy of FORD MOTOR COMPANY

  1. 3.

    1. 1.

      Remove the clip and the recline handle.

    1. 2.

      Remove the clip and the lumbar handle.
GFD43006Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the side shield screws.
GFD43007Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Side shield without manual lumbar shown, side shield with manual lumbar similar.

    Remove the side shield.

    1. 1.

      Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.

    1. 2.

      From underneath, squeeze the retainers together and pull out on the side shield.

    1. 3.

      Slide the side shield forward.
GFD43008Courtesy of FORD MOTOR COMPANY

  1. 6.

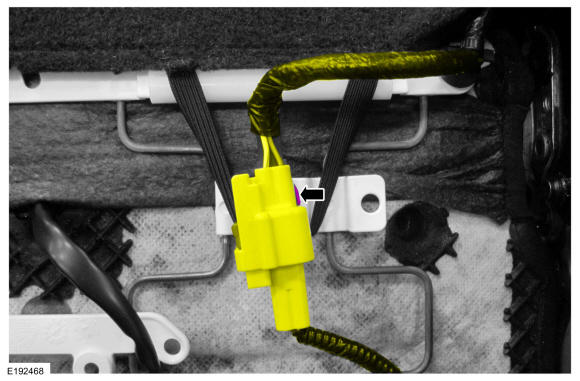

    Release the electrical connector retainer and position the side airbag wire harness aside.
GFD43050Courtesy of FORD MOTOR COMPANY

  1. 7.

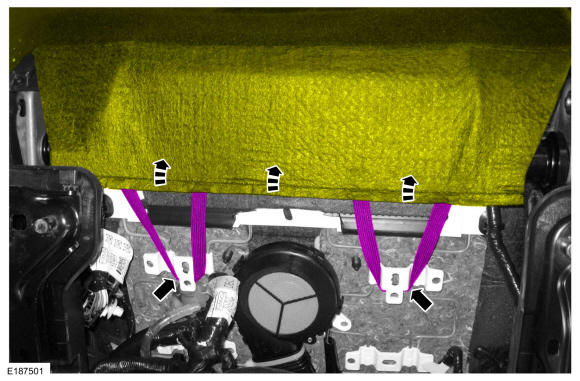

    Detach the backrest cover straps and position the backrest cover upward.
GFD43051Courtesy of FORD MOTOR COMPANY

  1. 8.

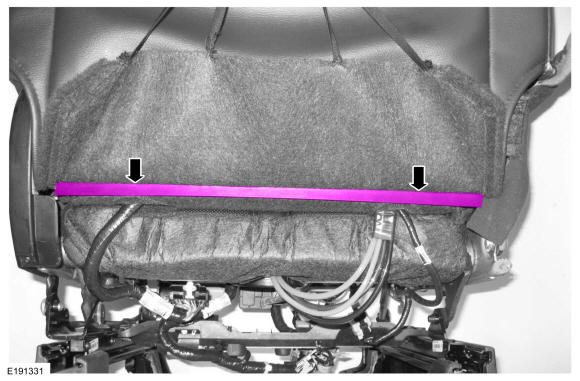

    Detach the backrest cover lower J-clip.
GFD42935Courtesy of FORD MOTOR COMPANY

  1. 9.

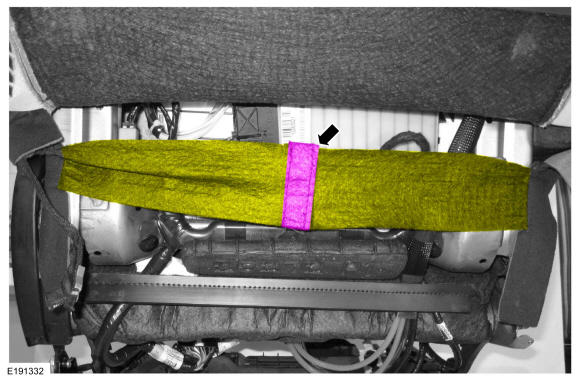

    Detach the hook-and-loop retainer and position the backrest cover strap aside.
GFD43052Courtesy of FORD MOTOR COMPANY

  1. 10.

    1. 1.

      NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

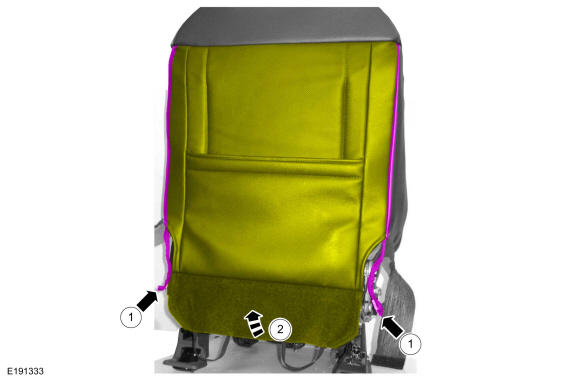

    Unzip the backrest cover zipper on each side.

  1. 2.

    Position the backrest cover upward.
GFD42937Courtesy of FORD MOTOR COMPANY

  1. 11.

    Position the lumbar assembly cable away from the seat track.
    • Disconnect the cable from the lumbar actuator.
    • Detach the cable retainers from the seat track.
GFD43009Courtesy of FORD MOTOR COMPANY

  1. 12.

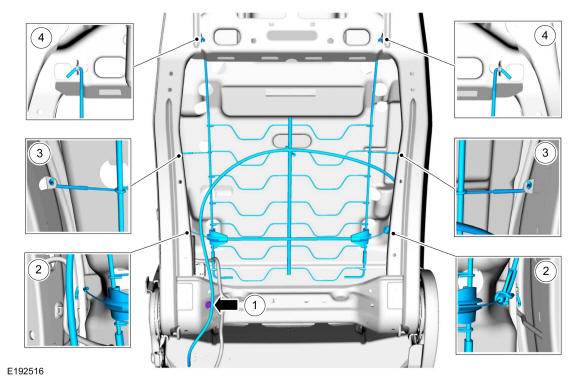

    Remove the lumbar assembly.

    1. 1.

      Release the lumbar assembly cable retainer.

    1. 2.

      Detach the lumbar assembly cable.

    1. 3.

      Detach the lumbar assembly J-hooks.

    1. 4.

      Detach the lumbar assembly upper J-hooks.
GFD43053Courtesy of FORD MOTOR COMPANY

  1. 13.

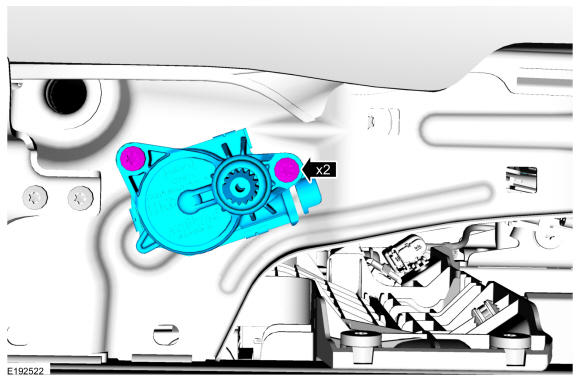

    If required, remove the screws and the lumbar actuator.
GFD43054Courtesy of FORD MOTOR COMPANY
