Front Seat Cushion Blower Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

2.

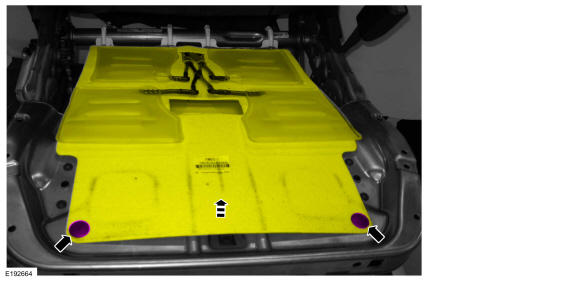

If equipped with multi-contour seat, remove the pin-type retainers and position the front of the seat cushion adjuster upward.

Courtesy of FORD MOTOR COMPANY

3.

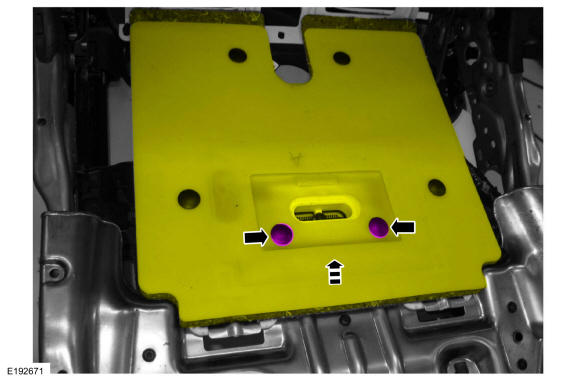

If equipped with OCS, remove the pin-type retainers and position the front of the OCS upward.

Courtesy of FORD MOTOR COMPANY

4.

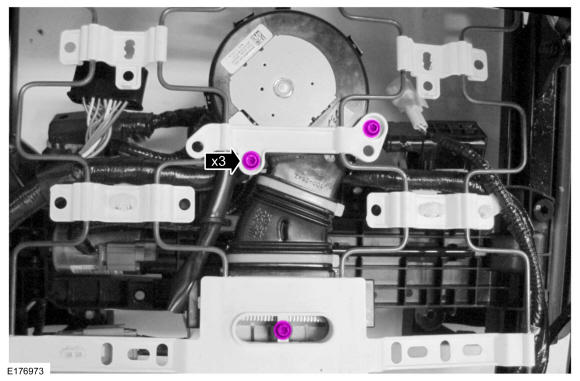

Remove the front seat cushion blower motor screws.

Courtesy of FORD MOTOR COMPANY

5.

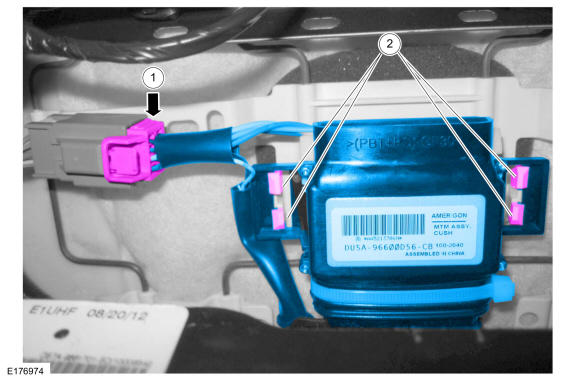

Remove the front seat cushion blower motor.
1. 1.

  Disconnect the front seat cushion blower motor electrical connector.
1. 2.

  Release the locking tabs.

Courtesy of FORD MOTOR COMPANY
