Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
NOTE:
For passenger seat
, the front seat cushion adjuster is not serviced separately. If a new front seat cushion adjuster is needed, install an OCS service kit equipped with a front seat cushion adjuster.
NOTE:
When equipped with an OCS service kit, the seat cushion adjuster is adhered to the bottom of the seat cushion foam. This requires the cushion cover, foam, seat cushion adjuster and OCS to be removed and replaced as an assembly.
NOTE:
Seat backrest blower motor without snorkel shown, unless otherwise called out.
- 1.NOTE: This step is only necessary when installing a new component.
For passenger seat, install a new OCS. Refer to: Occupant Classification System (OCS) Sensor - Vehicles With: Multi-Contour Seats .
- 2.
Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

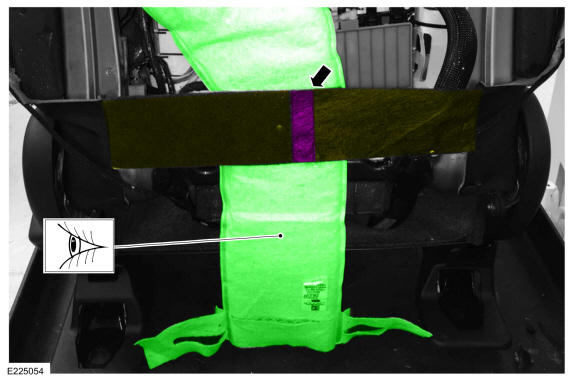

- 4.NOTE: Seat backrest blower motor with snorkel shown.NOTE: For installation of a backrest blower motor with snorkel, note the routing of the snorkel.
Detach the hook-and-loop retainer and position the backrest cover strap aside.
- 5.NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.
- 1.
Unzip the backrest cover zipper on each side.
- 2.
Position the backrest cover up.
- 1.
