Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
NOTE: Seat backrest blower motor without snorkel shown, unless otherwise called out.
NOTE: Methods are common among all options unless otherwise specified.

  1. 1.

    Move the front seat to the full upward position.
GFD42932Courtesy of FORD MOTOR COMPANY

  1. 2.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 3.

    Detach the electrical connector retainers and position the wire harnesses aside.
GFD42933Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Seat backrest blower motor with snorkel shown.

    1. 1.

      Detach the backrest cover straps.

    1. 2.

      If equipped, route the backrest cover straps through the backrest blower motor snorkel.

    1. 3.

      Position the backrest cover upward.
GFD42934Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Follow the unique instructions or graphics for this step in the installation.

    Detach the backrest cover lower J-clip.

GFD42935Courtesy of FORD MOTOR COMPANY

  1. 6.

    NOTE: Seat backrest blower motor with snorkel shown.
    NOTE: For installation of a backrest blower motor with snorkel, note the routing of the snorkel.

    Detach the hook-and-loop retainer and position the backrest cover strap aside.

GFD42936Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    1. 1.

      Unzip the backrest cover zipper on each side.

    1. 2.

      Position the backrest cover upward.
GFD42937Courtesy of FORD MOTOR COMPANY

  1. 8.

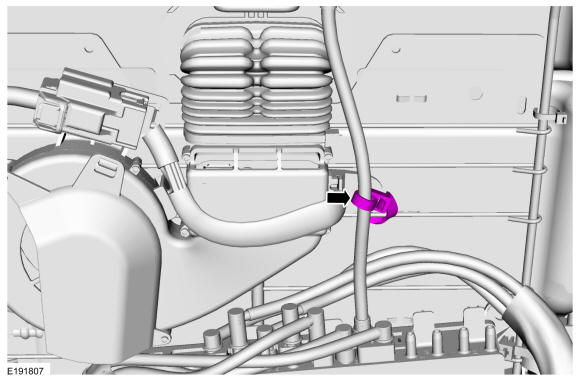

    If equipped with a multi-contour seat, remove the tie strap.
GFD42996Courtesy of FORD MOTOR COMPANY

  1. 9.

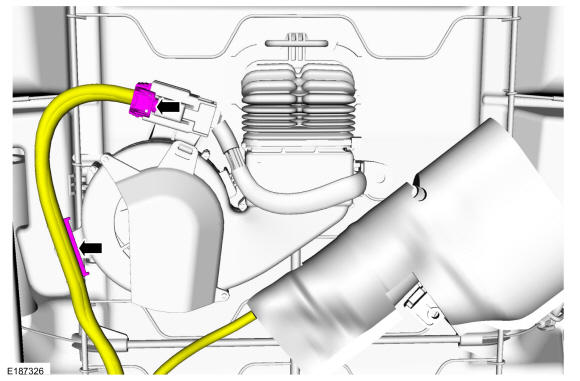

    Release the wire harness retainer and disconnect the blower motor electrical connector.
GFD42997Courtesy of FORD MOTOR COMPANY

  1. 10.

    Disconnect the blower motor manifold from the backrest cushion.
GFD42998Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: The backrest cover and foam have been removed for clarity.

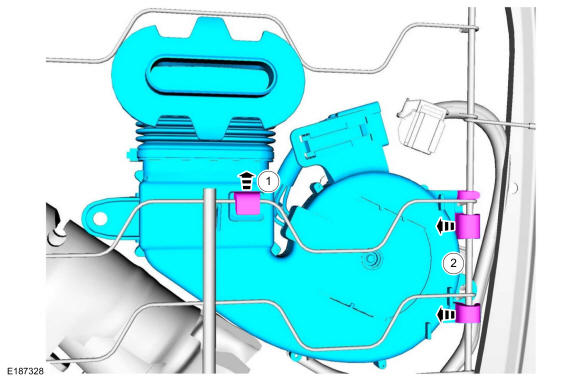

    Remove the blower motor.

    1. 1.

      Release the blower motor horizontal retainer.

    1. 2.

      Release the blower motor vertical retainers.
GFD42999Courtesy of FORD MOTOR COMPANY
