Front Center Seat: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

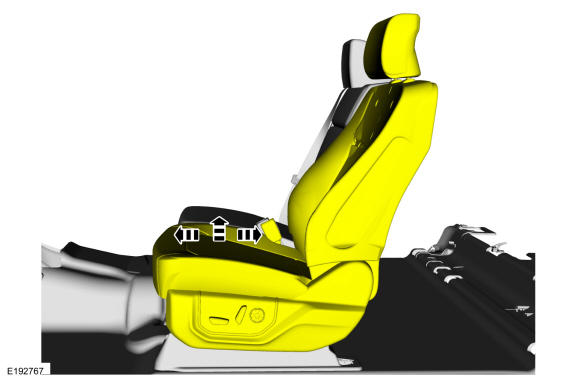

    Position the driver seat to access the seat LH bolts.
GFD42940Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the passenger front seat. Refer to: Front Seat .

  1. 3.

    If equipped, press the locking tab and disconnect the safety belt from the safety belt anchor.
GFD42941Courtesy of FORD MOTOR COMPANY

  1. 4.

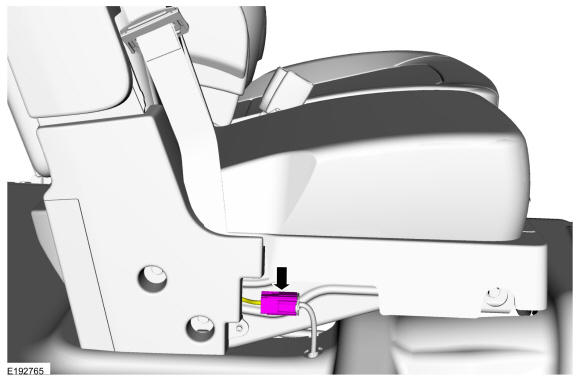

    If equipped, disconnect the seat electrical connector.
GFD42942Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Follow the unique instructions or graphics for this step in the installation.

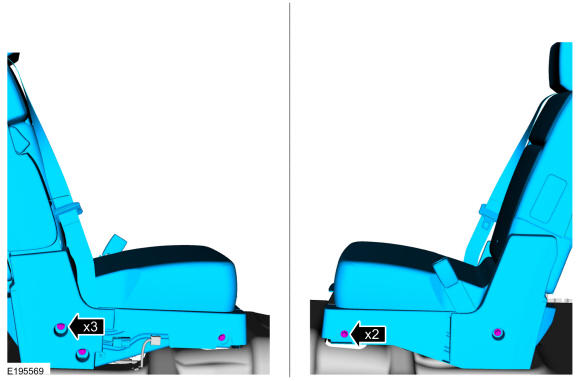

    Remove the bolts and the center seat.

GFD42943Courtesy of FORD MOTOR COMPANY

  1. 6.

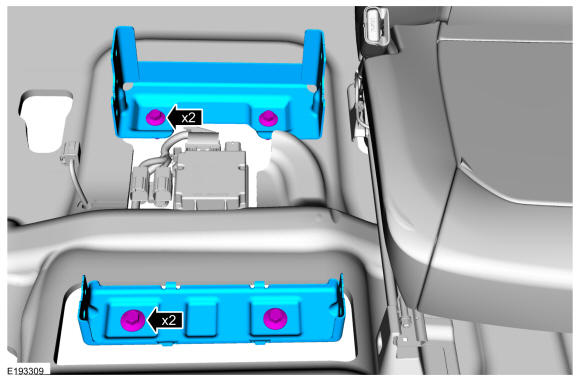

    If required, remove the bolts and the front center seat brackets.

    Torque

    : 41 lb.ft (55 Nm)

GFD42944Courtesy of FORD MOTOR COMPANY
