Front Center Seat Cushion Cover: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- 1.
Remove the front center seat. Refer to: Front Center Seat .
- 2.

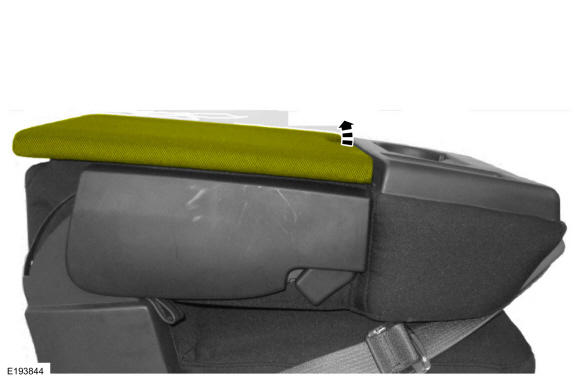

Position the seat cushion up.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the cup holder.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Remove screws and the seat storage tray.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Position the seat cushion down.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

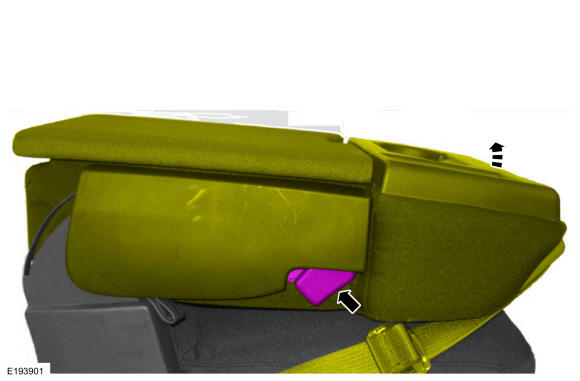

Release the seat latch and fold the seat backrest down.
 Courtesy of FORD MOTOR COMPANY
|
Regular Cab
- 7.
Remove the backrest latch cover.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the screws, release the retaining clip and remove the RH side shield.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Remove the screws, release the retaining clips and remove the LH side shield.
 Courtesy of FORD MOTOR COMPANY
|
- 10.

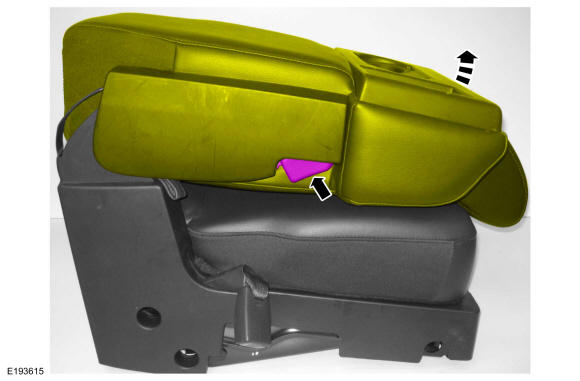

Release the seat latch and raise the seat backrest up.
 Courtesy of FORD MOTOR COMPANY
|
SuperCab and SuperCrew
- 11.
Remove the rear cup holder assembly.
- 1.
Release the rear cup holder retainers.
- 2.
Disconnect the auxiliary power point electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 12.
If equipped, position the armrest storage compartment lid up.
 Courtesy of FORD MOTOR COMPANY
|
- 13.
Remove the backrest latch cover.
 Courtesy of FORD MOTOR COMPANY
|
- 14.

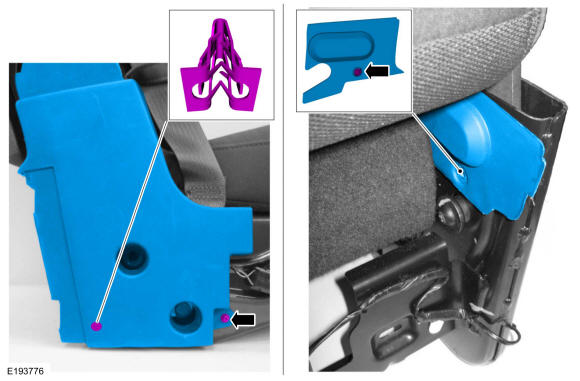

Remove the screws, release the retaining clip and remove the RH side shields.
 Courtesy of FORD MOTOR COMPANY
|
- 15.
Remove the screws, release the retaining clips and remove the LH side shield.
 Courtesy of FORD MOTOR COMPANY
|
- 16.
Release the seat latch and raise the seat backrest up.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 17.

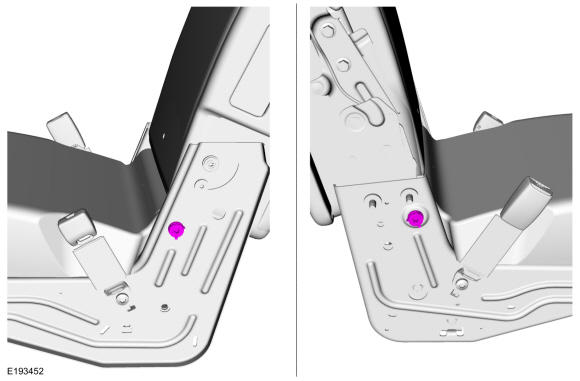

Remove the seat cushion pivot bolts.Torque
: 26 lb.ft (35 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 18.

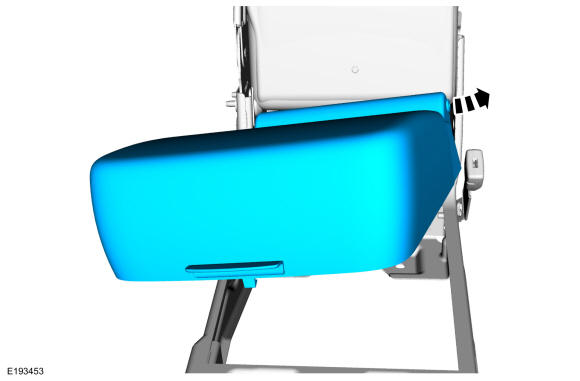

Release the LH side of the seat cushion from the seat cushion base and remove the seat cushion.
 Courtesy of FORD MOTOR COMPANY
|
- 19.

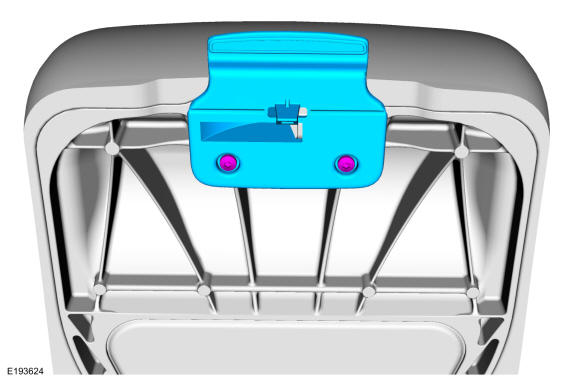

Remove the screws and the seat cushion latch.
 Courtesy of FORD MOTOR COMPANY
|
- 20.

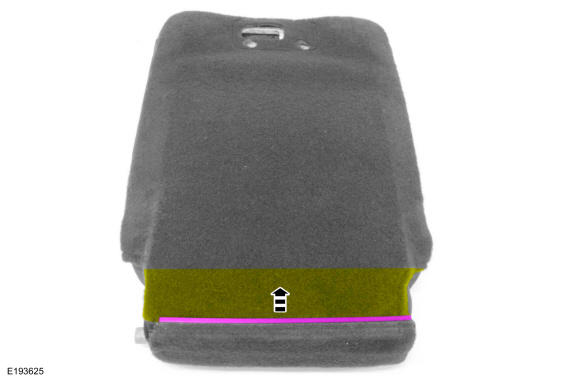

Release the J-hook and position the cushion cover upward.
 Courtesy of FORD MOTOR COMPANY
|
- 21.

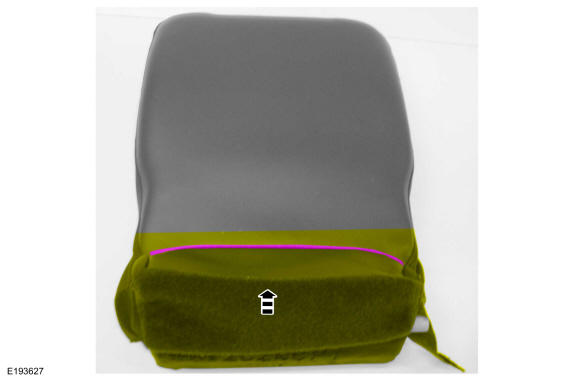

Release the hook-and-loop retainer and position the cushion cover strap aside.
 Courtesy of FORD MOTOR COMPANY
|
- 22.
NOTE:
Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat cushion foam pad.

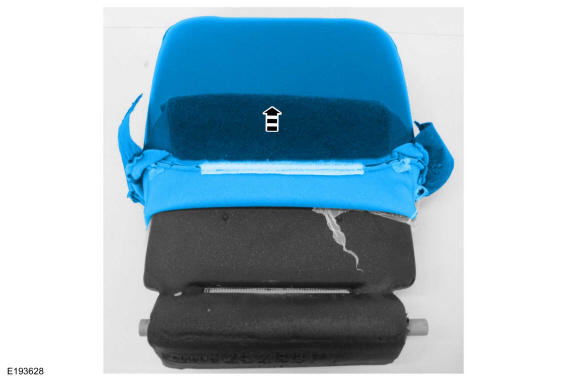

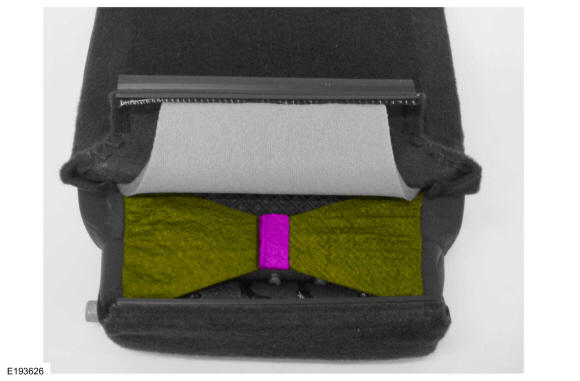

Release the hook-and-loop strip and position the cushion cover upward.
 Courtesy of FORD MOTOR COMPANY
|
- 23.
Remove the cushion cover.
 Courtesy of FORD MOTOR COMPANY
|
