Front Center Seat Backrest Cover - SuperCab/SuperCrew: Removal

All seats

1. 1.

   Remove the front center seat backrest. Refer to: Front Center Seat Backrest - SuperCab/SuperCrew .

1. 2.

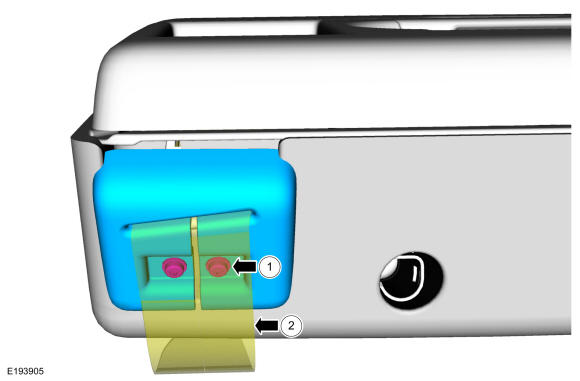

   Remove the seatbelt guide.

   1. 1.

      Remove the screws.

   1. 2.

      Position the seatbelt aside.

Courtesy of FORD MOTOR COMPANY

1. 3.

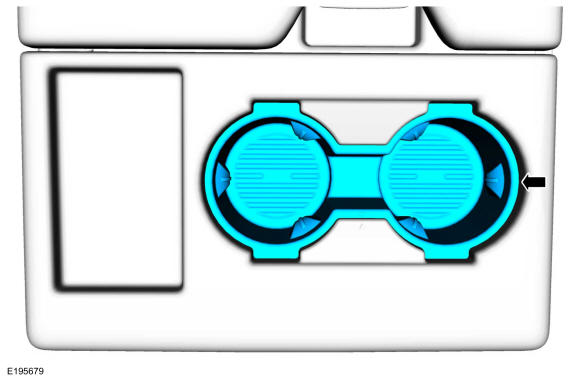

   Remove the cup holder insert.

Courtesy of FORD MOTOR COMPANY

1. 4.

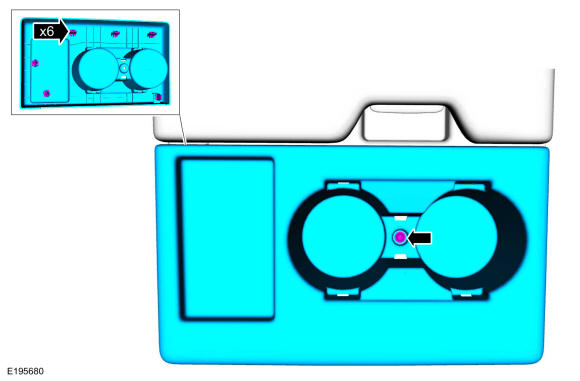

   Remove the screw, release the retaining clips and remove the cup holder.

Courtesy of FORD MOTOR COMPANY

Seats with storage tray

1. 5.

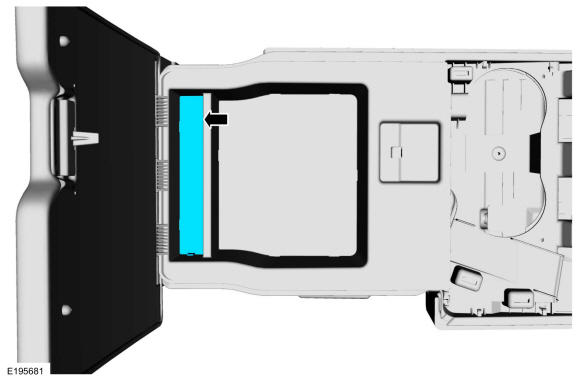

   Remove the trim cover.

Courtesy of FORD MOTOR COMPANY

1. 6.

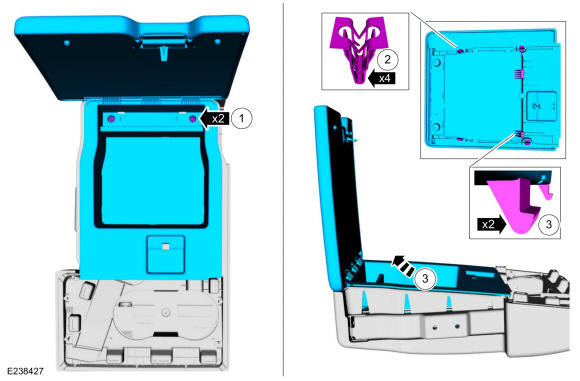

   Remove the armrest storage tray.

   1. 1.

      Remove the screws.

   1. 2.

      Release the retainers.

   1. 3.

      Remove the storage tray.

Courtesy of FORD MOTOR COMPANY

1. 7.

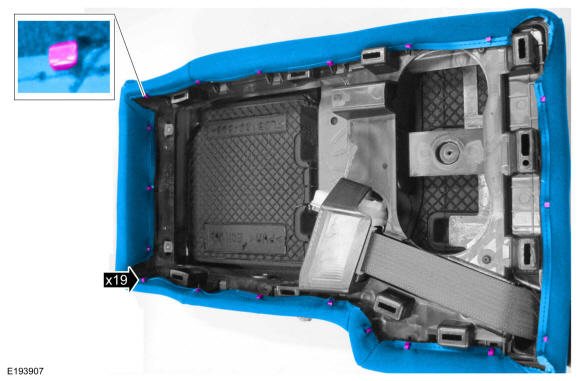

   Release the cover from the J-hooks and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY

Seats without storage tray

1. 8.

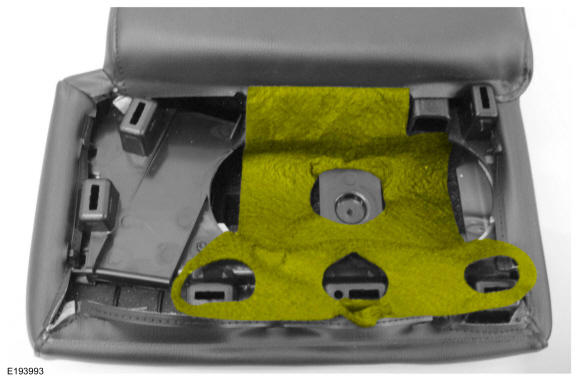

   Position the backrest cover flap aside.

Courtesy of FORD MOTOR COMPANY

1. 9.

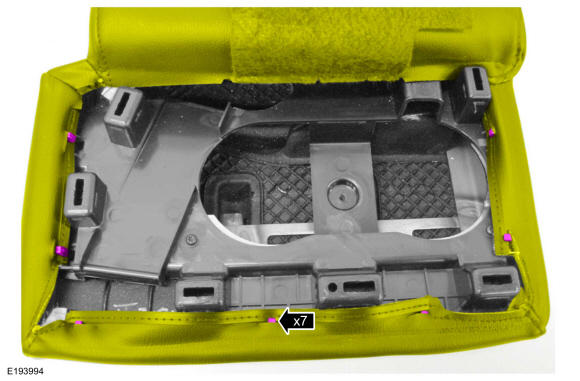

   Release the cover from the J-hooks and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY

1. 10.

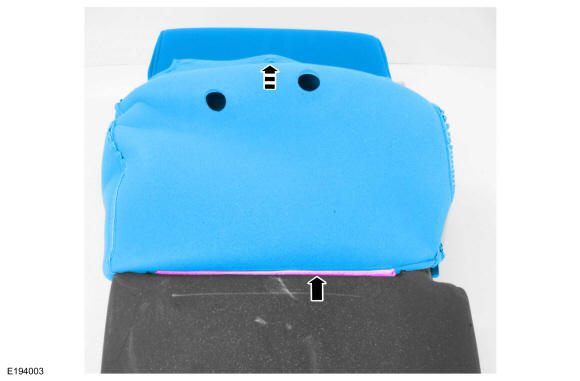

   NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat backrest foam pad.
   NOTE: Note the position of the safety belt for installation.

   Release the hook-and-loop strip and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY
