Front Active Park Assist Sensors: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the front fender moulding.
- 2.

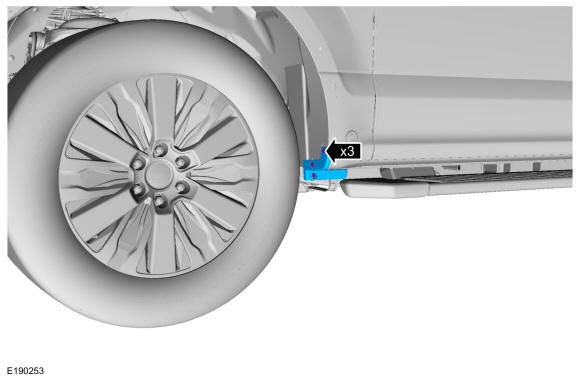

Remove the screws and the fender liner reinforcement.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

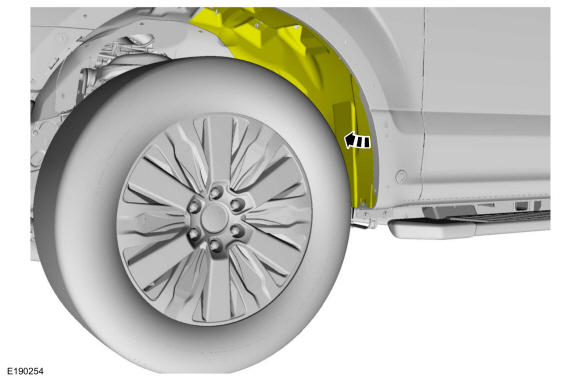

Position the fender splash shield aside.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

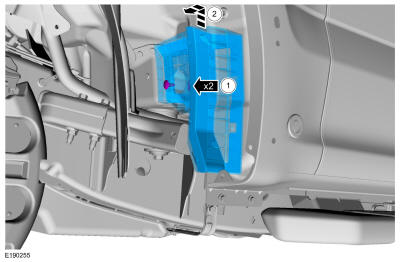

Remove the fender splash shield bracket.
- 1.
Remove the 2 push pins.
- 2.
Slide the fender splash shield bracket up and out.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

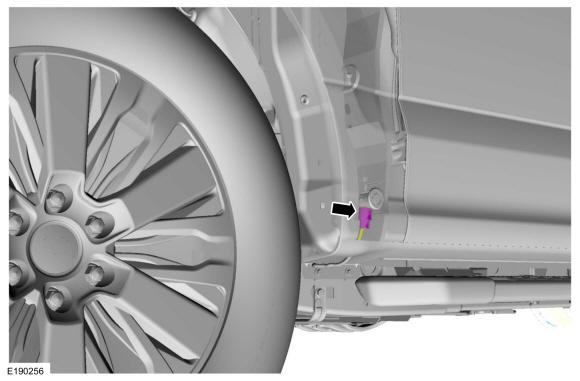

Disconnect the active park assist sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the active park assist sensor.
- 1.
Release the tabs.
- 2.
Remove the active park assist sensor from the bracket.
