Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

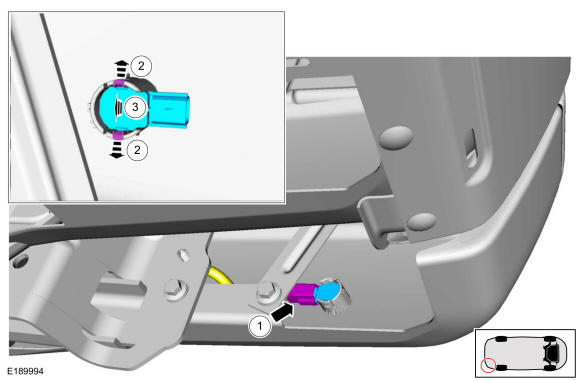

Inner rear parking aid sensors

2.

NOTE: On both sides.

Remove the inner rear parking aid sensor.
1. 1.

  Disconnect the inner rear parking aid sensor electrical connector.
1. 2.

  Release the tabs.
1. 3.

  Slide the inner rear parking aid sensor out of the bracket.

Courtesy of FORD MOTOR COMPANY

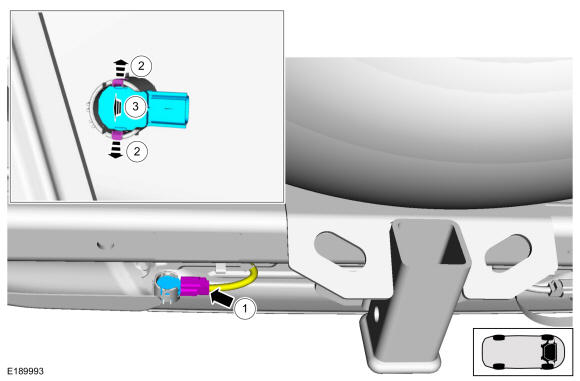

Outer rear parking aid sensors

3.

NOTE: On both sides.

Remove the outer rear parking aid sensor.
- Disconnect the outer rear parking aid sensor electrical connector.
- Release the tabs.
- Slide the outer rear parking aid sensor out of the bracket.

Courtesy of FORD MOTOR COMPANY
