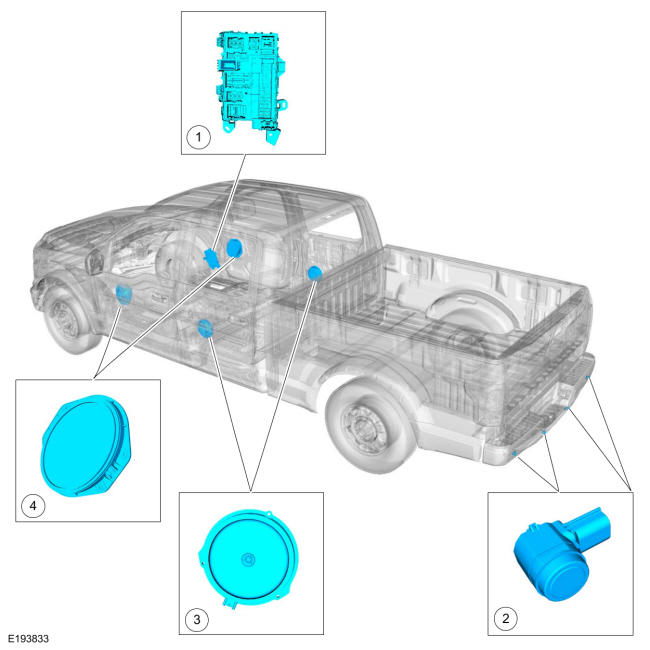

Component Location, Parking Aid - Audible
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Parking Aid Module (PAM) (integral to the BCM |
| 2 |
Rear parking aid sensors |
| 3 |
Rear speakers (part of audio system) |
| 4 |
Front Speakers (part of audio system) |
