Seatbelt Shoulder Height Adjuster - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

1.

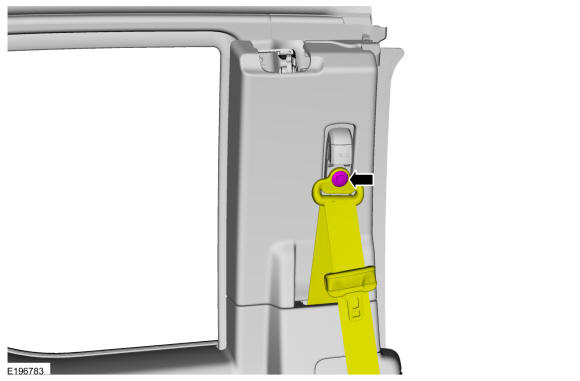

Remove the bolt and position the safety belt aside.

GFD43501

Courtesy of FORD MOTOR COMPANY

2.

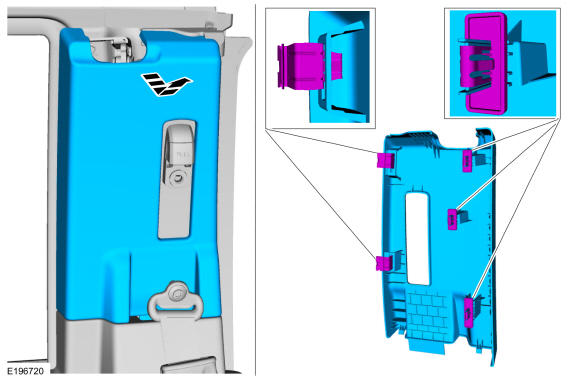

Remove the rear door upper trim panel.

GFD43502

Courtesy of FORD MOTOR COMPANY

3.

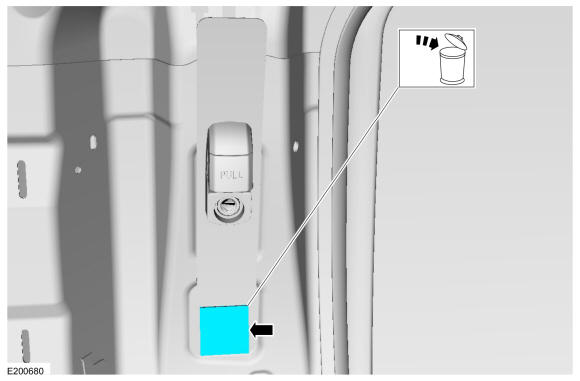

Remove the weather seal and discard.

GFD43503

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not use excessive force pulling the safety belt shoulder height adjuster release latch when the D-ring cover has been removed. Failure to follow this instruction may cause the release latch to be dislodged from the height adjuster assembly.

Pull the release latch and slide the height adjuster down.

GFD43498

Courtesy of FORD MOTOR COMPANY

5.

Position the height adjuster.
1. 1.

  Remove the bolt.
  Torque

  : 30 lb.ft (40 Nm)
1. 2.

  Rotate the height adjuster.

GFD43499

Courtesy of FORD MOTOR COMPANY

6.

Detach the lower tab and remove the height adjuster.

GFD43500

Courtesy of FORD MOTOR COMPANY
