Rear Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

SuperCab

1.

Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .

SuperCrew

2.

Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

SuperCab and SuperCrew

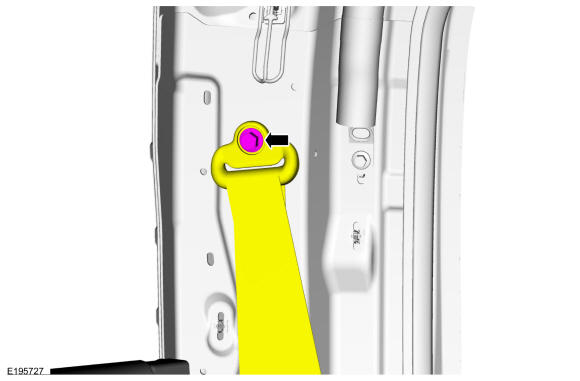

3.

Remove the bolt and position the safety belt aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

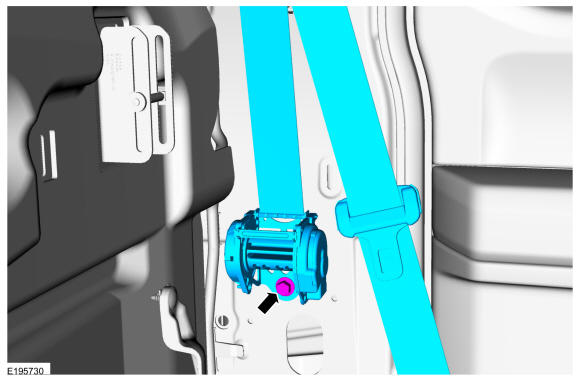

4.

Remove the bolt and the safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
