Rear Seatbelt Buckle RH - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the RH rear seat. Refer to: Rear Seat RH - SuperCrew .

2.

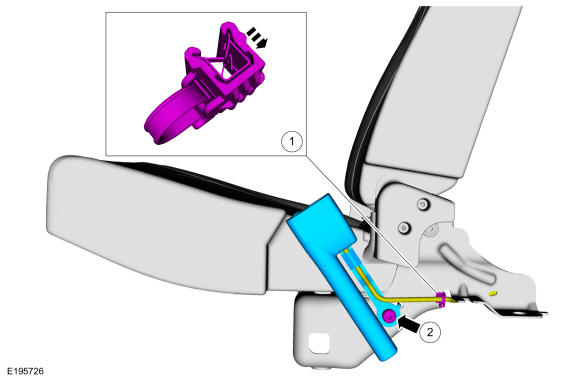

Remove the safety belt buckle.
1. 1.

  Release the retainer and position the wire harness aside.
1. 2.

  Remove the bolt and the safety belt buckle.
  Torque

  : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
