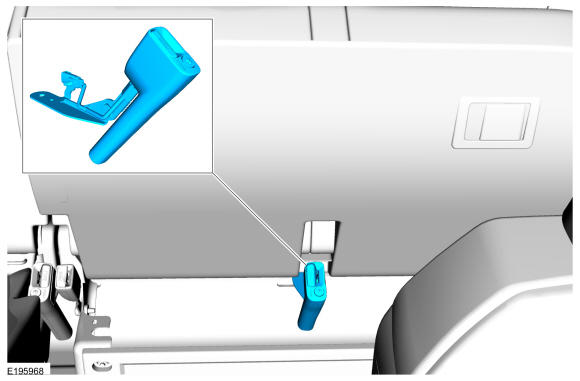

Rear Seatbelt Buckle LH - Vehicles With: Inflatable Seatbelts: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- 2.NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.

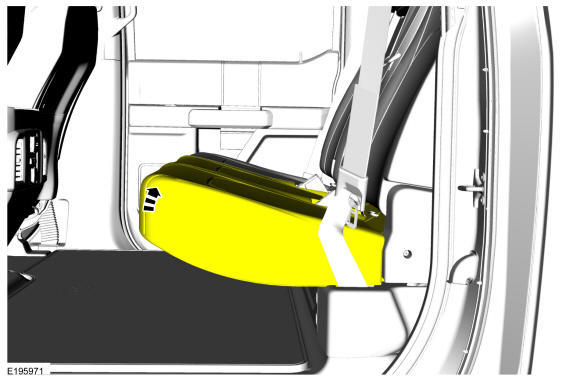

Fold the LH rear seat backrest down.
- 1.

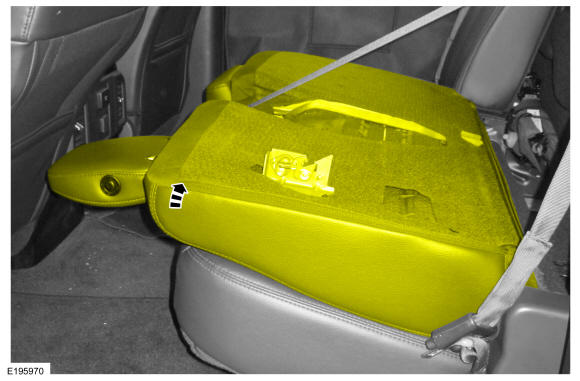

Raise the seat cushion.
- 2.
Release the seat latch.
- 3.
Fold the seat backrest down.
- 1.
- 3.

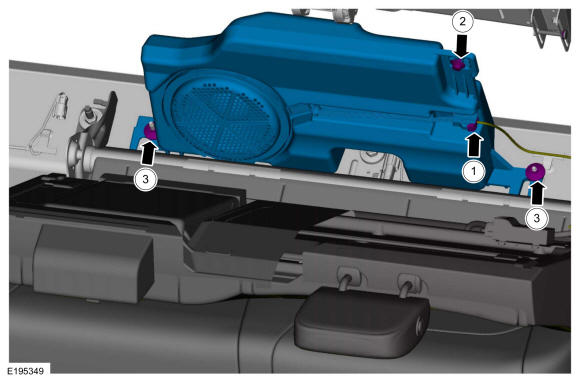

If equipped, remove the subwoofer.- 1.

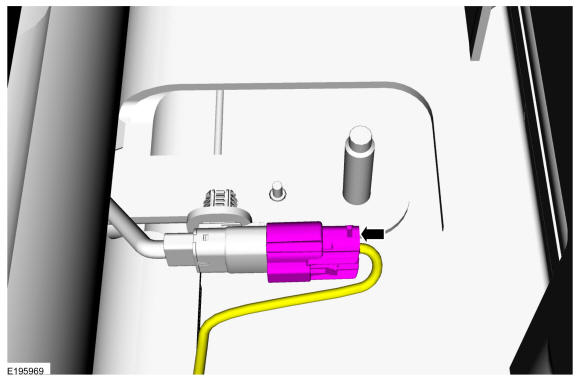

Disconnect the electrical connector.
- 2.

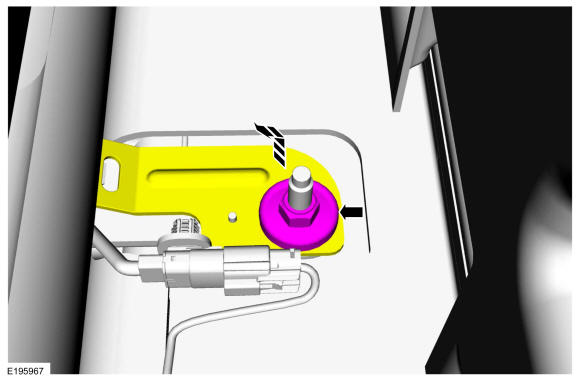

Remove the bolt.Torque
: 62 lb.in (7 Nm)
- 3.
Remove the nuts.Torque
: 62 lb.in (7 Nm)
- 1.
