Rear Outer Seatbelt Upper Retractor - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

1.

Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

2.

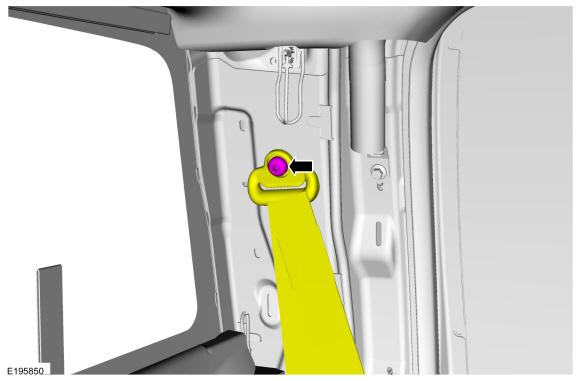

Remove the bolt and position the safety belt aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

3.

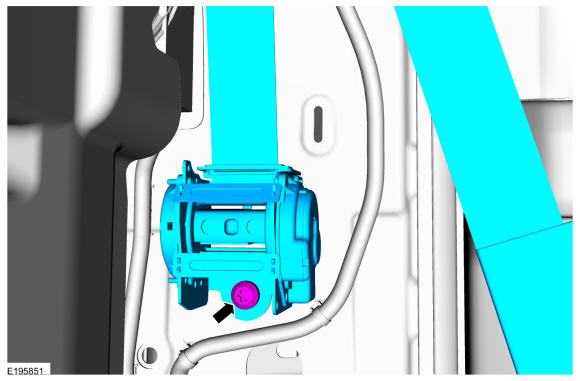

Remove the bolt and the upper safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
