Rear Outer Seatbelt Lower Retractor - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

1.

Remove the lower anchor bolt cover.

GFD42737

Courtesy of FORD MOTOR COMPANY

2.

Remove the anchor bolt and separate the upper seatbelt from the lower seatbelt.
Torque

: 71 lb.in (8 Nm)

GFD42738

Courtesy of FORD MOTOR COMPANY

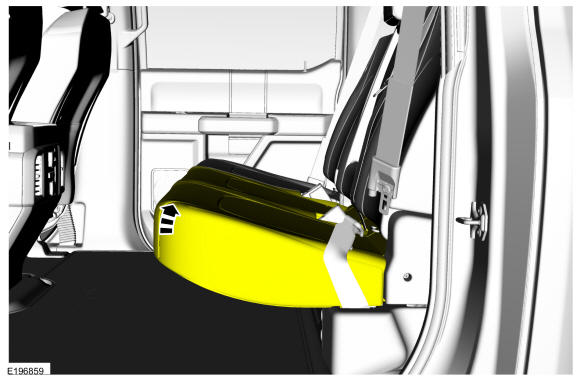

3.

Lift the rear seat cushion up.

GFD43483

Courtesy of FORD MOTOR COMPANY

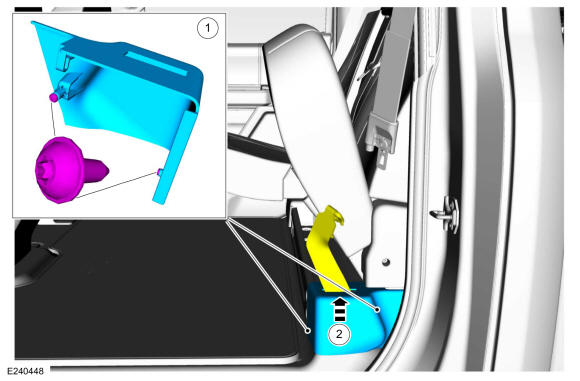

4.

Remove the lower seatbelt retractor cover.
1. 1.

  Remove the screws.
1. 2.

  Remove the cover while feeding the seatbelt through the opening.

GFD43484

Courtesy of FORD MOTOR COMPANY

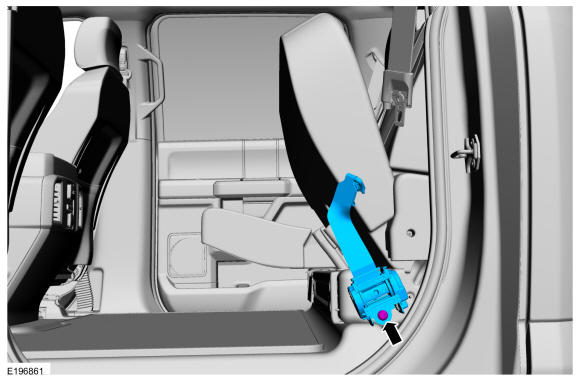

5.

Remove the bolt and the lower seatbelt retractor.
Torque

: 30 lb.ft (40 Nm)

GFD43485

Courtesy of FORD MOTOR COMPANY
