Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: SuperCrew shown in illustration, all others similar.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the load space trim panel. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .

  1. 2.

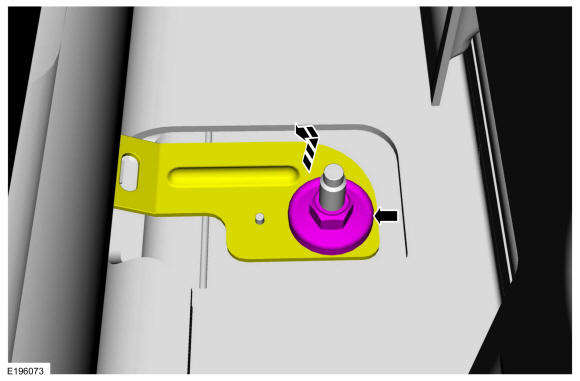

    Remove the nut and position the rear center safety belt/buckle anchor aside.

    Torque

    : 59 lb.ft (80 Nm)

GFD43480Courtesy of FORD MOTOR COMPANY

  1. 3.

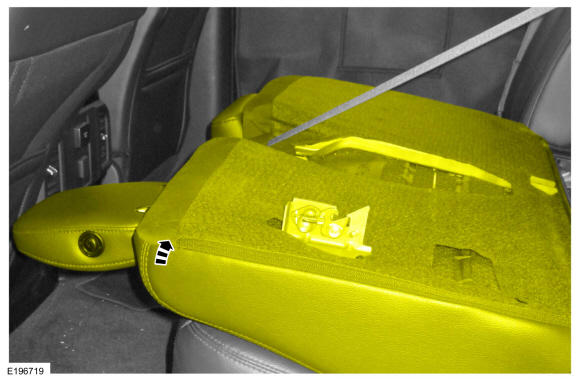

    Lift the rear seat backrest up.
GFD43481Courtesy of FORD MOTOR COMPANY

  1. 4.

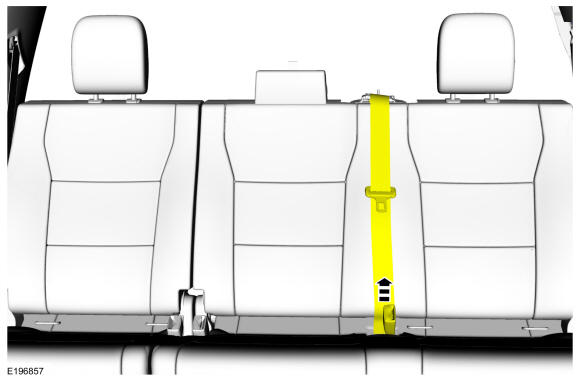

    Pull the rear center safety belt/buckle through the seat cushion.
GFD43482Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the bolts and position the safety belt guide aside.

    Torque

    : 30 lb.ft (40 Nm)

GFD43460Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the bolt and the safety belt retractor.

    Torque

    : 30 lb.ft (40 Nm)

GFD43461Courtesy of FORD MOTOR COMPANY
