Front Seatbelt Retractor and Pretensioner - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH shown in illustration, RH similar.

  1. 1.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 2.

    Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .

  1. 3.

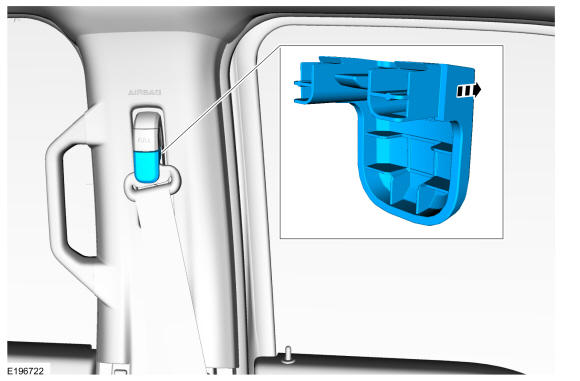

    Remove the D-ring cover.
GFD43475Courtesy of FORD MOTOR COMPANY

  1. 4.

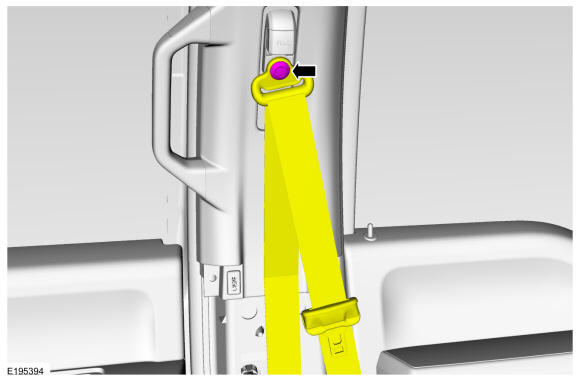

    Remove the bolt and position the safety belt aside.
GFD43476Courtesy of FORD MOTOR COMPANY

  1. 5.

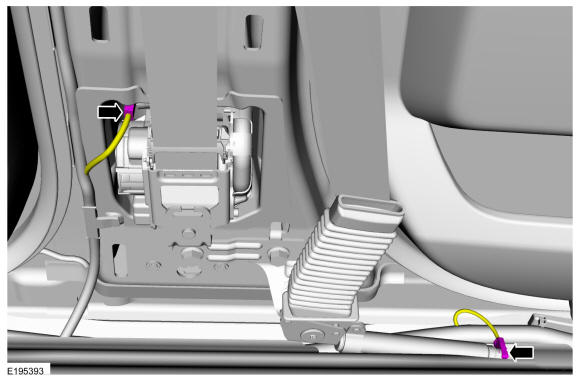

    Disconnect the pretensioner electrical connectors and position aside.
GFD43477Courtesy of FORD MOTOR COMPANY

  1. 6.

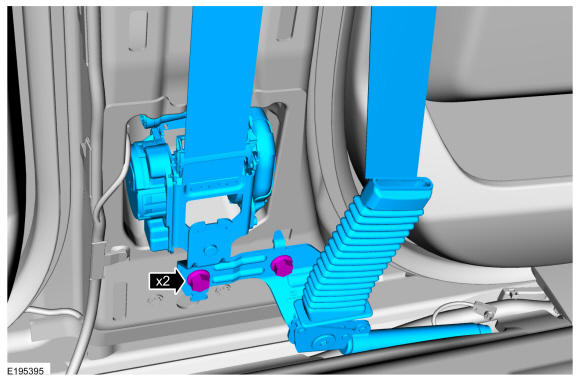

    Remove the bolts and the safety belt retractor and anchor pretensioner.

    Torque

    : 30 lb.ft (40 Nm)

GFD43478Courtesy of FORD MOTOR COMPANY
