Front Seatbelt Retractor and Pretensioner - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH shown in illustration, RH similar.

  1. 1.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 2.

    Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .

  1. 3.

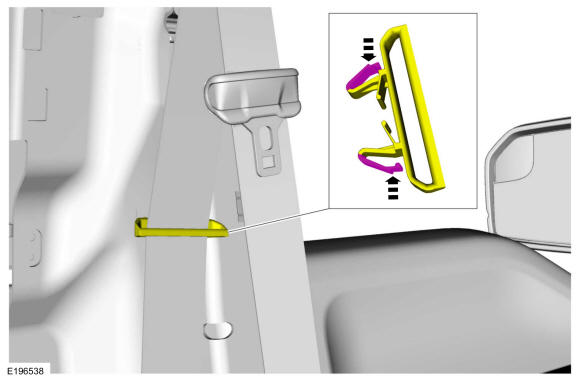

    Release the retainers and position the safety belt guide aside.
GFD43471Courtesy of FORD MOTOR COMPANY

  1. 4.

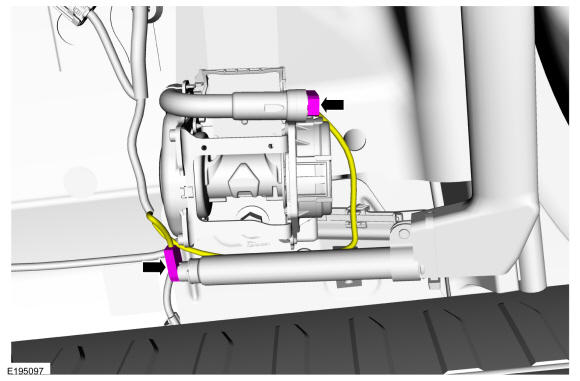

    Disconnect the pretensioner electrical connectors and position aside.
GFD43472Courtesy of FORD MOTOR COMPANY

  1. 5.

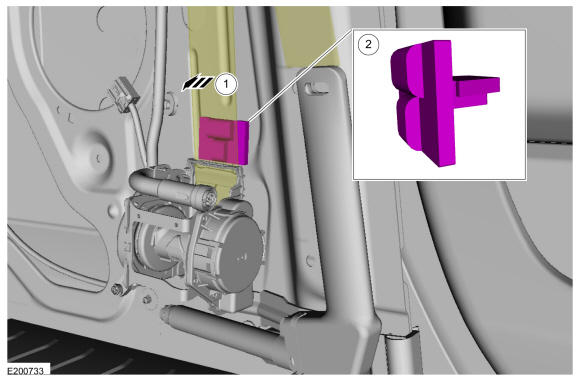

    Remove the foam weather seal.

    1. 1.

      Position the safety belt to access the seal.

    1. 2.

      Remove the seal.
GFD43473Courtesy of FORD MOTOR COMPANY

  1. 6.

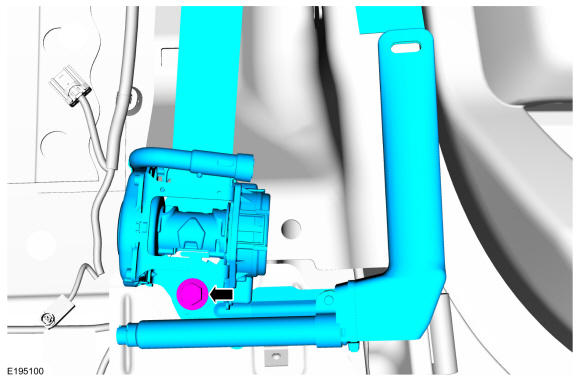

    Remove the bolt and the safety belt retractor and anchor pretensioner.

    Torque

    : 30 lb.ft (40 Nm)

GFD43474Courtesy of FORD MOTOR COMPANY
