Front Seatbelt Retractor and Pretensioner - Regular Cab: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown in illustration, RH similar.
- 1.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- 2.

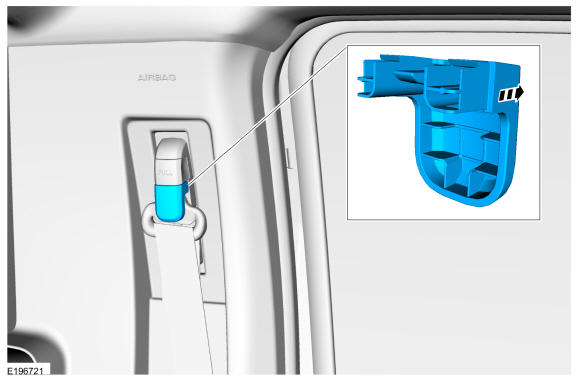

Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .
- 7.

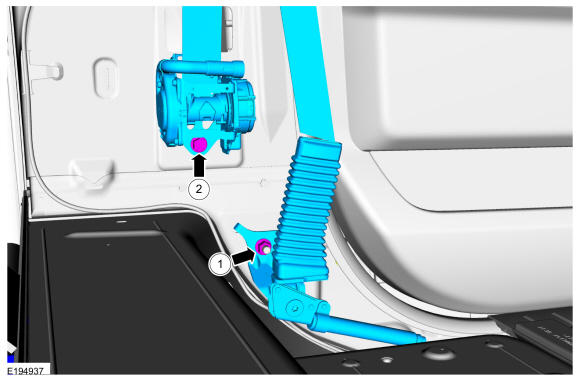

Remove the safety belt retractor and anchor pretensioner.- 1.
Remove the nut.Torque
: 30 lb.ft (40 Nm)
- 2.
Remove the bolt and the safety belt retractor and anchor pretensioner.Torque
: 30 lb.ft (40 Nm)
- 1.
