Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

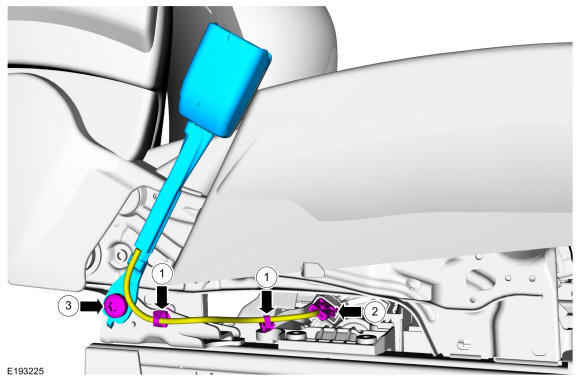

NOTE: Driver seat shown in illustration, passenger seat similar.

1.

Remove the front seat. Refer to: Front Seat .

2.

Remove the safety belt buckle.
1. 1.

  Release the wire harness retainers.
1. 2.

  Disconnect the electrical connector.
1. 3.

  Remove the bolt and the safety belt buckle.
  Torque

  : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
