Front Center Seatbelt Retractor - SuperCab/SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the front center seat backrest cover. Refer to: Front Center Seat Backrest Cover - SuperCab/SuperCrew .

2.

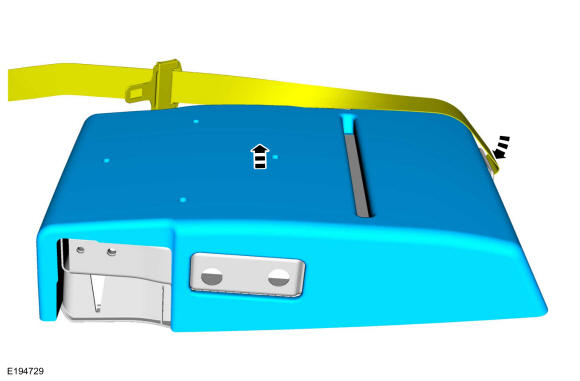

Remove the backrest foam while positioning the safety belt through the foam opening.

Courtesy of FORD MOTOR COMPANY

3.

Remove the screws and the backrest/armrest bracket while positioning the safety belt buckle through the bracket opening.

Courtesy of FORD MOTOR COMPANY

4.

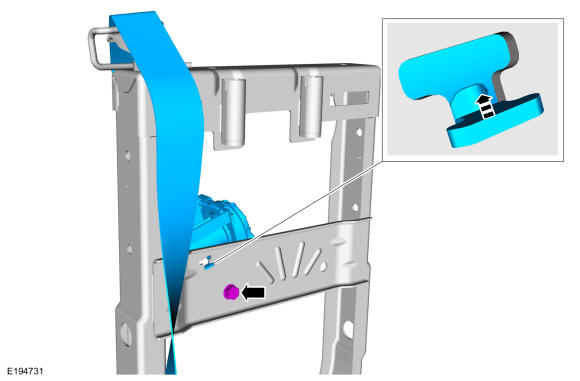

Remove the bolt and the safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
