Front Center Seatbelt Retractor - Regular Cab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

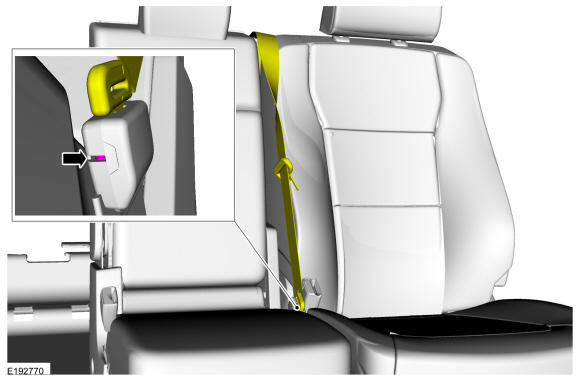

Press the locking tab and disconnect the safety belt from the detachable safety belt anchor.

Courtesy of FORD MOTOR COMPANY

2.

Remove the load space trim panel. Refer to: Loadspace Trim Panel - Regular Cab .

3.

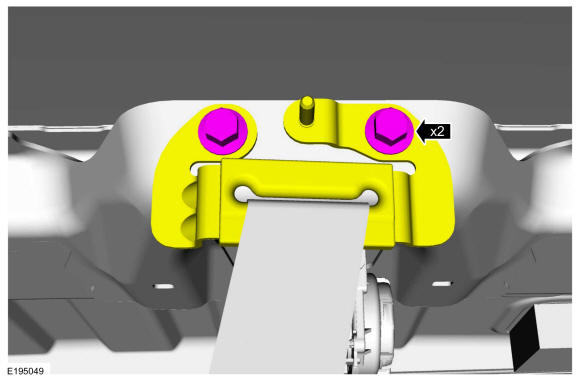

Remove the bolts and position the safety belt guide aside.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

4.

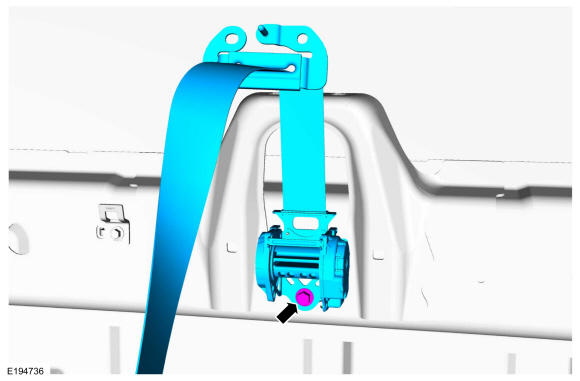

Remove the bolt and the safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
