Front Center Seatbelt Buckle - Regular Cab: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the front center seat. Refer to: Front Center Seat
.
- 2.

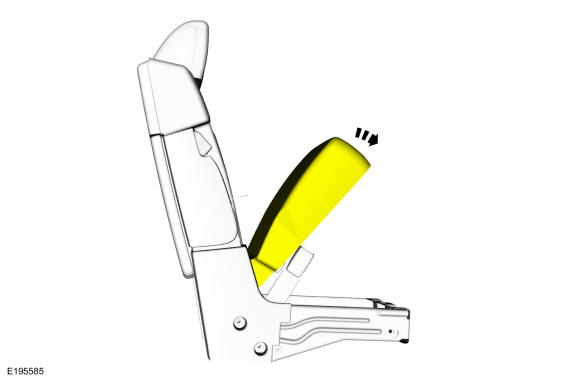

Raise the seat cushion.
 Courtesy of FORD MOTOR COMPANY
|

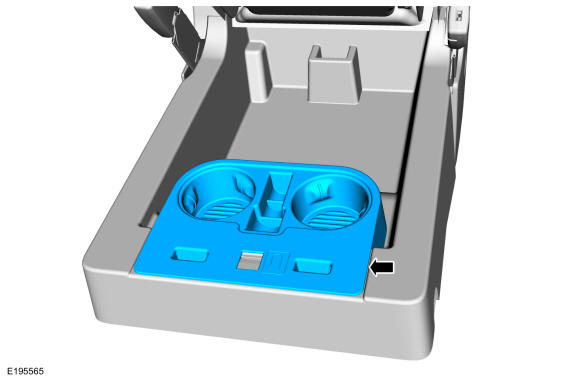

- 3.
Remove the cup holder.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

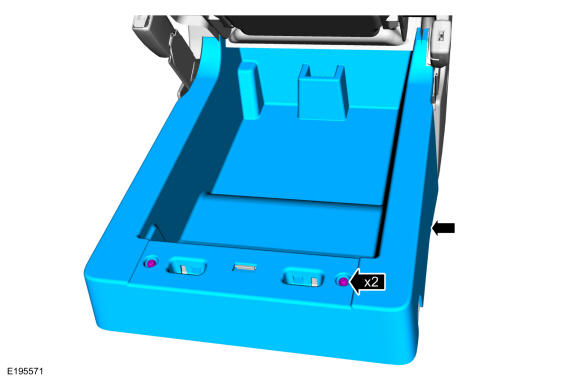

Remove the screws and the seat storage tray.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

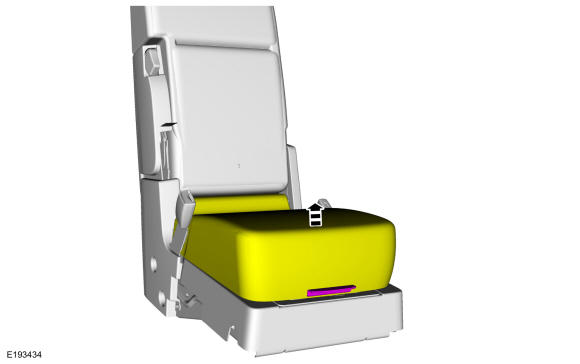

Lower the seat cushion.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Release the seat latch and fold the seat backrest down.
 Courtesy of FORD MOTOR COMPANY
|
RH buckle
- 7.

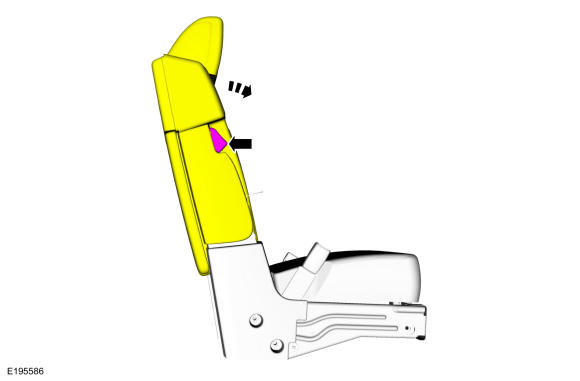

Remove the backrest latch cover.
 Courtesy of FORD MOTOR COMPANY
|

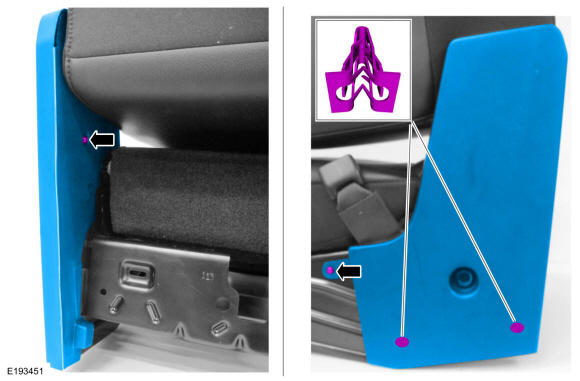

- 8.

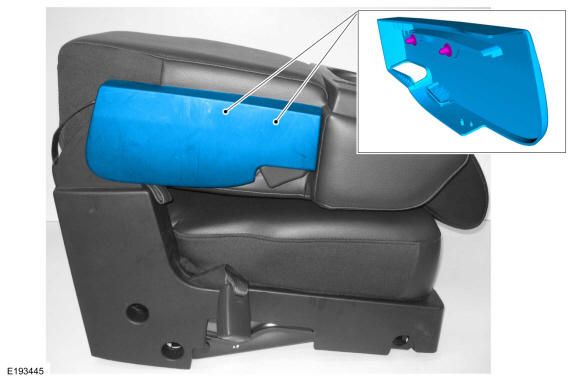

Remove the screws, release the retaining clip and remove the RH side shield.
 Courtesy of FORD MOTOR COMPANY
|
- 9.

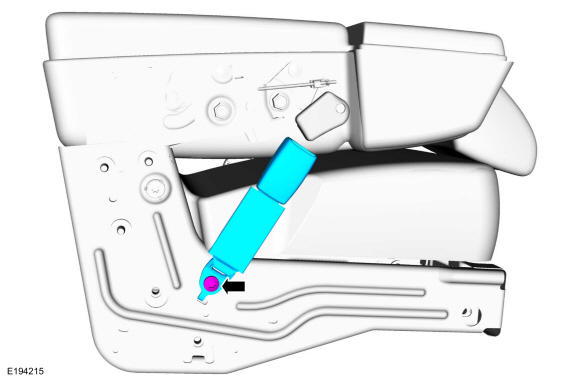

Remove the bolt and the safety belt buckle.Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
LH detachable anchor
- 10.

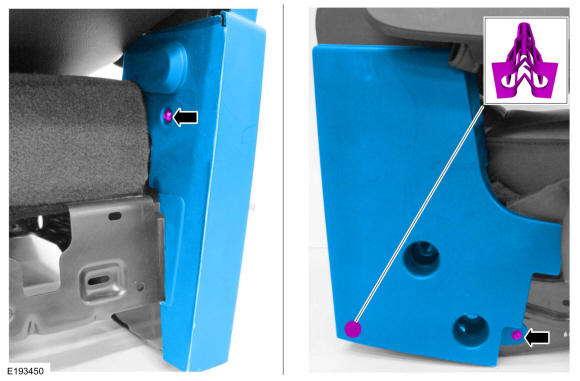

Remove the screws, release the retaining clips and remove the LH side shield.
 Courtesy of FORD MOTOR COMPANY
|
- 11.

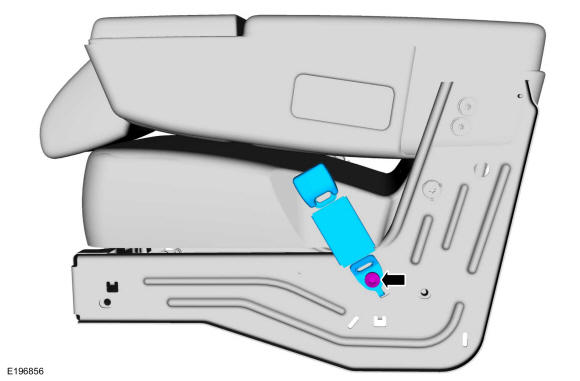

Remove the bolt and the detachable safety belt anchor.Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
