Child Safety Seat Tether Anchor - SuperCab/SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

SuperCab

1.

NOTE: The striker should be in its lowest position for the latch to engage.

Lower the LH backrest.
1. 1.

  Pull the backrest release strap and release the latch from the striker.
1. 2.

  Lower the backrest.

GFD42780

Courtesy of FORD MOTOR COMPANY

SuperCrew

2.

NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: The striker should be in its lowest position for the latch to engage.

Fold the LH rear seat backrest down.
1. 1.

  Raise the seat cushion.
1. 2.

  Release the seat latch.
1. 3.

  Fold the seat backrest down.

GFD42767

Courtesy of FORD MOTOR COMPANY

SuperCab and SuperCrew

3.

Release the seat latch and fold the RH rear seat backrest down.

GFD42779

Courtesy of FORD MOTOR COMPANY

4.

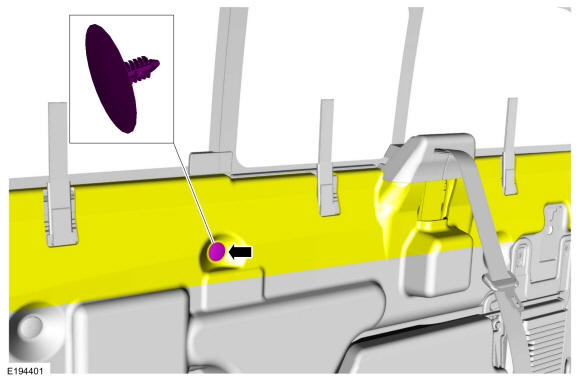

Remove the pin-type retainer and position the load space trim panel aside.

GFD43455

Courtesy of FORD MOTOR COMPANY

5.

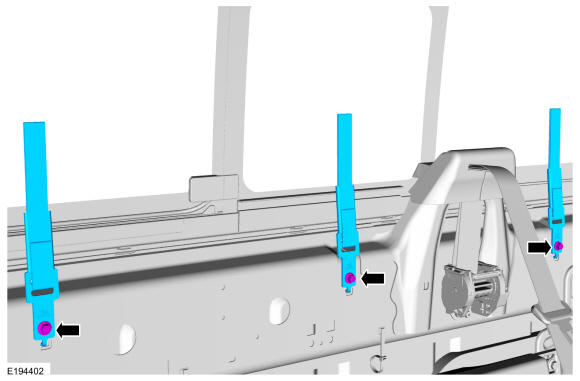

NOTE: The load space trim panel has been removed for clarity.

Remove the bolt(s) and the child safety seat tether anchor(s).

Torque

: 18 lb.ft (25 Nm)

GFD43456

Courtesy of FORD MOTOR COMPANY
