Locked Seatbelt Retractor Releasing

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Repair

NOTE: If the seatbelt webbing does not extract from the seatbelt retractor from the stowed position, this may be due to a normal condition which happens when the seatbelt retracts at a high rate of speed. Follow these steps to release the seatbelt.

Front row seatbelt retractor

NOTE: Typical front outboard seatbelt retractor shown in illustration, other configurations similar.
NOTE: To unlock the seatbelt retractor, only a few millimeters of seatbelt are necessary to retract back onto the seatbelt retractor spool.

  1. 1.

    Slowly lower the seatbelt shoulder height adjuster allowing the seatbelt to retract back onto the seatbelt retractor spool. If the seatbelt shoulder height adjuster is all the way down, proceed to step  3.

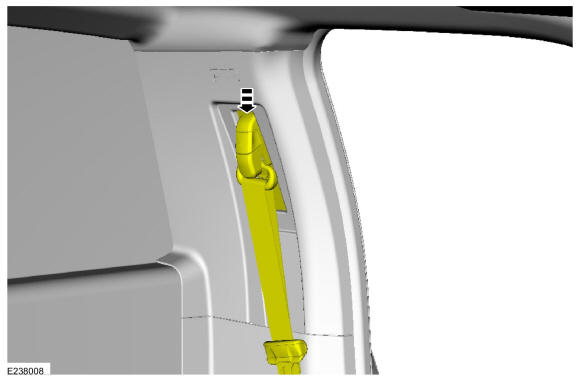

GFD43442Courtesy of FORD MOTOR COMPANY

  1. 2.

    Slowly extract the seatbelt from the seatbelt retractor. If the seatbelt does not extract, proceed to the next step.

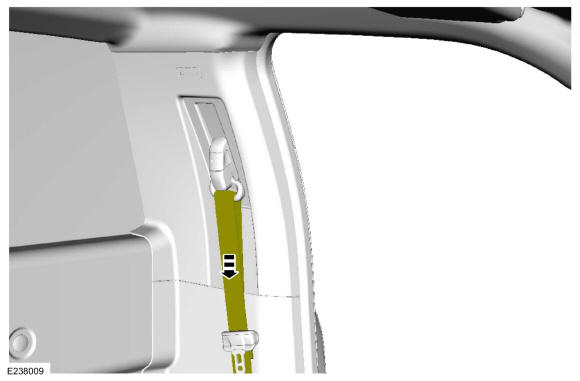

GFD43443Courtesy of FORD MOTOR COMPANY

  1. 3.

    Firmly pull and extract as much seatbelt from the seatbelt retractor as possible.
GFD43443Courtesy of FORD MOTOR COMPANY

  1. 4.

    1. 1.

      Slowly feed the seatbelt slack back into the retractor to unlock it.

    1. 2.

      Slowly extract the seatbelt from the seatbelt retractor. If the seatbelt does not  extract, proceed to the next step. If the seatbelt does  extract, proceed to step  8.

  1. 5.

    Remove the fastener and detach the seatbelt anchor or seatbelt anchor and pretensioner. REFER to the appropriate removal and installation procedure in this service information.

  1. 6.

    1. 1.

      Slowly feed the seatbelt slack back into the retractor to unlock it.

    1. 2.

      Slowly extract the seatbelt from the seatbelt retractor. Proceed to the next step.

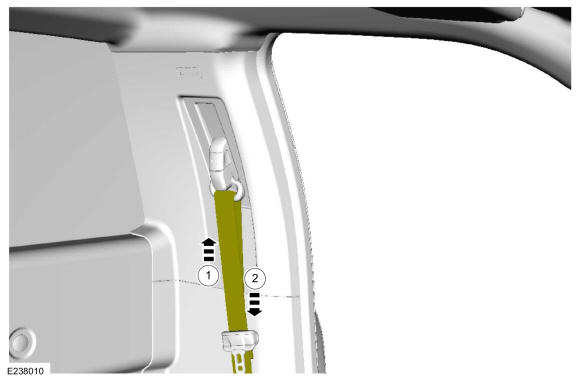

GFD43444Courtesy of FORD MOTOR COMPANY

  1. 7.

    • If the seatbelt does not  extract, install a new seatbelt retractor. Refer to the appropriate seatbelt retractor removal and installation procedure in this service information.
    • If the seatbelt does  extract, install all fasteners that were removed and tighten them to specification. REFER to the appropriate removal and installation procedure.

  1. 8.

    Check the active restraint system for correct operation by carrying out the appropriate functional test. Refer to: DIAGNOSIS AND TESTING .

Rear seatbelt retractor

NOTE: Typical rear outboard seatbelt retractor shown in illustration, other configurations similar.
NOTE: To unlock the seatbelt retractor, only a few millimeters of seatbelt are necessary to retract back onto the seatbelt retractor spool.

  1. 9.

    Slowly pull the seatbelt out as far out as possible.

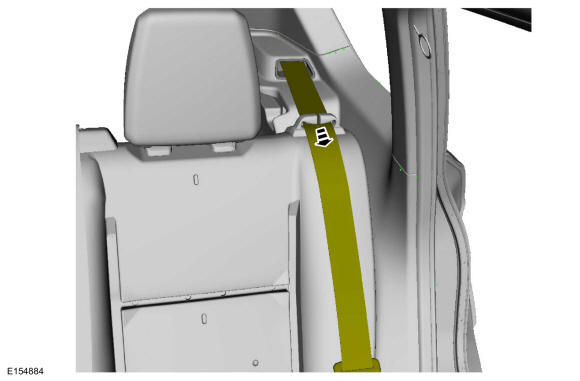

GFD43445Courtesy of FORD MOTOR COMPANY

  1. 10.

    1. 1.

      NOTE: Compressing the backrest foam and/or reclining the rear seat backrest (if equipped) allows more slack of the seatbelt webbing to be fed into the seatbelt retractor.

    Compress the backrest foam pad and recline the rear seat backrest (if equipped).

  1. 2.

    Slowly feed the seatbelt slack back into the retractor to unlock it. If the seatbelt does not extract after carrying out this step, proceed to the next step.

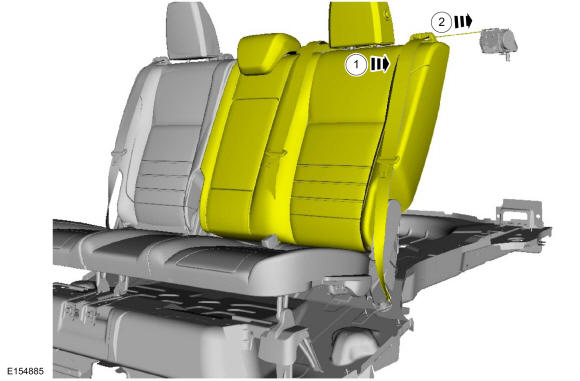

GFD43446Courtesy of FORD MOTOR COMPANY

  1. 11.

    Firmly pull and extract as much seatbelt from the seatbelt retractor as possible.
GFD43445Courtesy of FORD MOTOR COMPANY

  1. 12.

    1. 1.

      Slowly feed the seatbelt slack back into the retractor to unlock it.

    1. 2.

      Slowly extract the seatbelt from the seatbelt retractor. If the seatbelt does not  extract, proceed to the next step. If the seatbelt does  extract, proceed to step  16.

  1. 13.

    Remove the fastener and detach the seatbelt anchor or inflatable seatbelt union. REFER to the appropriate removal and installation procedure in this service information.

  1. 14.

    1. 1.

      Slowly feed the seatbelt slack back into the retractor to unlock it.

    1. 2.

      Extract the seatbelt webbing from the seatbelt retractor. Proceed to the next step.

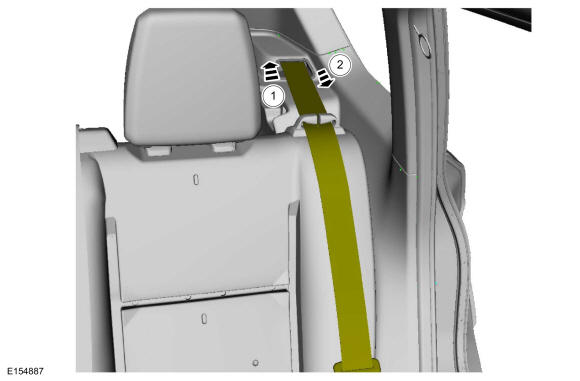

GFD43447Courtesy of FORD MOTOR COMPANY

  1. 15.

    • If the seatbelt does not  extract, install a new seatbelt retractor. Refer to the appropriate seatbelt retractor removal and installation procedure in this service information.
    • If the seatbelt does  extract, install all fasteners that were removed and tighten them to specification. REFER to the appropriate removal and installation procedure.

  1. 16.

    Check the active restraint system for correct operation by carrying out the appropriate functional test. Refer to: DIAGNOSIS AND TESTING .
