Rear Door Ajar Switch - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the rear door trim panel. REFER to: Rear Door Trim Panel - SuperCab .

2.

Remove the water shield.

Courtesy of FORD MOTOR COMPANY

3.

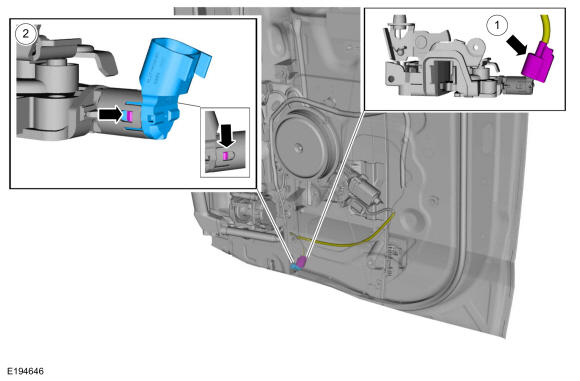

1. 1.

  Disconnect the electrical connector.
1. 2.

  Release the tabs and remove the rear door ajar switch.

Courtesy of FORD MOTOR COMPANY
