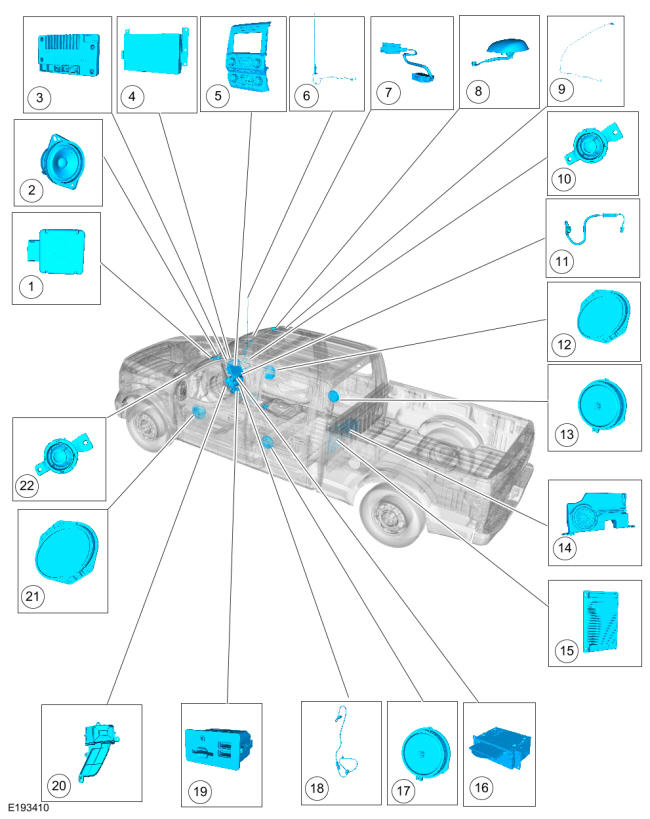

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | GPSM (located in the top center area of the instrument panel) |
| 2 | Center instrument panel speaker |
| 3 | APIM |
| 4 | 8-inch (203 mm) FDIM touchscreen |
| 5 | FCIM |
| 6 | AM/ FM/HD Radio ® antenna/coaxial cable pigtail |
| 7 | SYNC ® microphone (located in the overhead console) |
| 8 | Satellite radio antenna |
| 9 | Upper and lower satellite radio antenna coaxial cables |
| 10 | RHF A-pillar tweeter speaker |
| 11 | AM/ FM/HD Radio ® coaxial cable jumper |
| 12 | RHF door woofer speaker |
| 13 | RHR door coaxial speaker |
| 14 | Subwoofer speaker and enclosure assembly |
| 15 | Audio DSP module |
| 16 | ACM (contains DACMC for 2.7L and 3.5L GTDI) |
| 17 | LHR door coaxial speaker |
| 18 | USB cable (part of the 14401 harness) |
| 19 | Media hub |
| 20 | RH steering wheel switches |
| 21 | LHF door woofer speaker |
| 22 | LHF A-pillar tweeter speaker |
