Rear Window Glass Sliding Panel: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Position the rear window glass sliding panel as shown. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .
- 5.

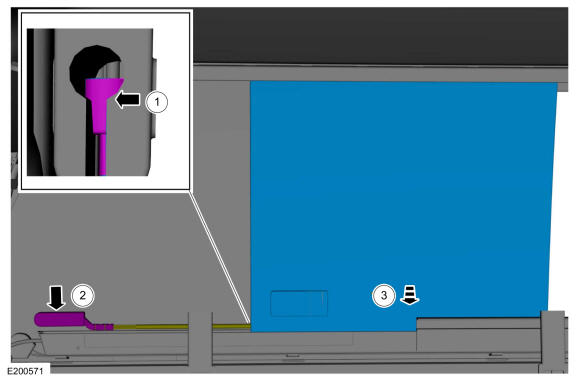

Detach the rear window glass sliding panel left stop and cable.- 1.
Pull the left cable to remove the stop from the rear window glass sliding rail.
- 2.
Detach the left window rail stop from the rear window glass sliding rail.
- 3.
Remove the cable end from the rear window glass sliding panel.
- 1.
- 6.
Position the rear window glass sliding panel to release the tension on the right cable.Dimension
: 0.5000 in (12.7 mm)
- 7.

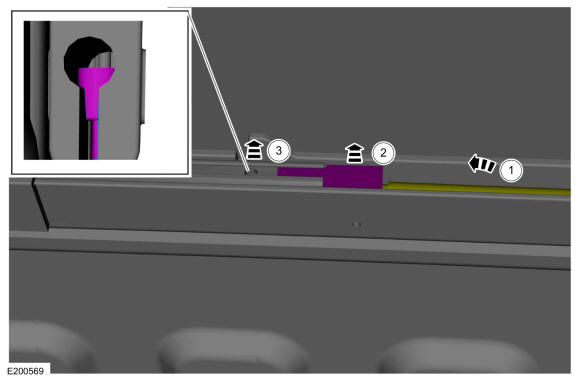

Detach the rear window glass sliding panel right stop and cable.- 1.
Lift the right cable to remove the stop from the rear window glass sliding rail.
- 2.
Detach the right window rail stop from the rear window glass sliding rail.
- 1.
- 8.
Remove the rear window glass sliding panel carrier guide.- 1.
Position the rear window glass sliding panel to full open.
- 2.
Using long nose pliers, remove the rear window glass sliding panel carrier guide. Use the General Equipment: Long Nose Pliers
- 1.
- 9.
Remove the rear window glass sliding panel.- 1.
Remove the cable end from the rear window glass sliding panel.
- 2.NOTE: Pry at the center of the snap tab to prevent damage to the solder terminals.
Disconnect the electrical snap tab from the right side rear window glass.
- 3.
Remove the rear window glass sliding panel.
- 1.
