Rear Door Window Glass - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: LH side shown, RH side similar.

1.

Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .

2.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

3.

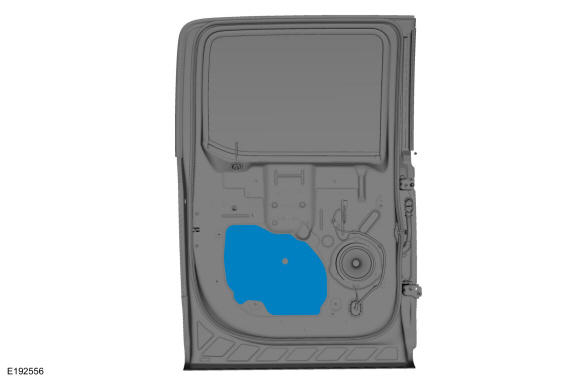

Remove the watershield.

GFD43178

Courtesy of FORD MOTOR COMPANY

Vehicles with manual windows

4.

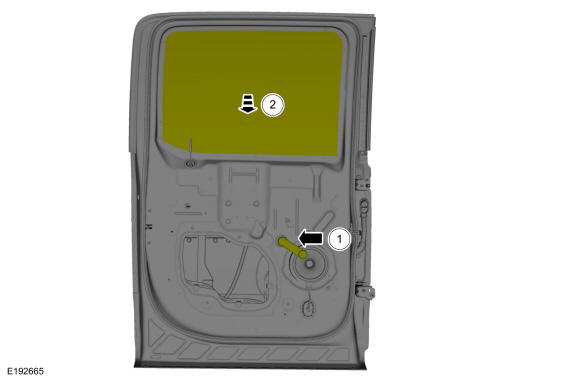

Lower the rear door window glass.
1. 1.

  Install the rear door window glass handle.
1. 2.

  Lower the rear door window glass.

GFD43179

Courtesy of FORD MOTOR COMPANY

Vehicles with power windows

5.

Remove the rear door window control switch. Refer to: Rear Door Window Control Switch - SuperCrew, Vehicles With: Rear Power Windows .

6.

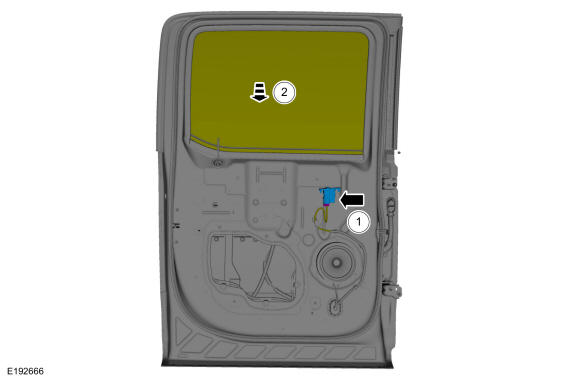

Lower the rear door window glass.
1. 1.

  Install the rear door window control switch.
1. 2.

  Lower the rear door window glass.

GFD43180

Courtesy of FORD MOTOR COMPANY

All vehicles

7.

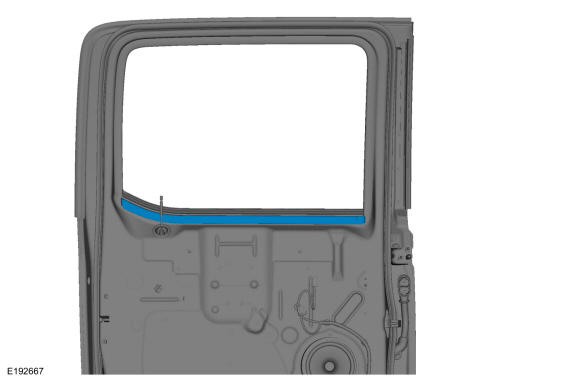

Remove the inner belt moulding.

GFD43175

Courtesy of FORD MOTOR COMPANY

8.

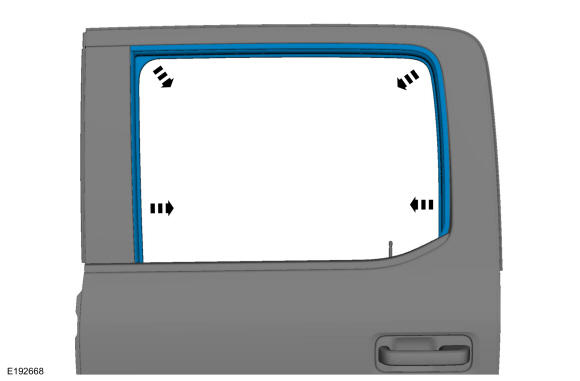

Remove the rear door glass top run.

GFD43176

Courtesy of FORD MOTOR COMPANY

Vehicles with manual windows

9.

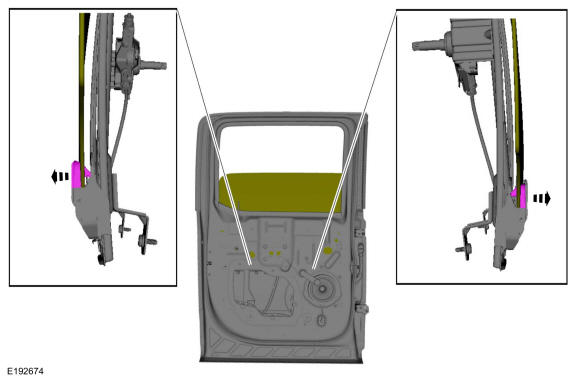

Release the clips from rear door window glass.

GFD43181

Courtesy of FORD MOTOR COMPANY

Vehicles with power windows

10.

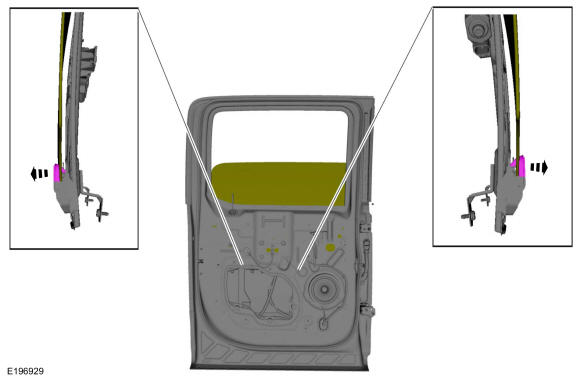

Release the clips from rear door window glass.

GFD43182

Courtesy of FORD MOTOR COMPANY

All vehicles

11.

Remove the rear door glass.

GFD43183

Courtesy of FORD MOTOR COMPANY
