Rear Door Window Glass - SuperCab, Vehicles With: Rear Power Windows: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

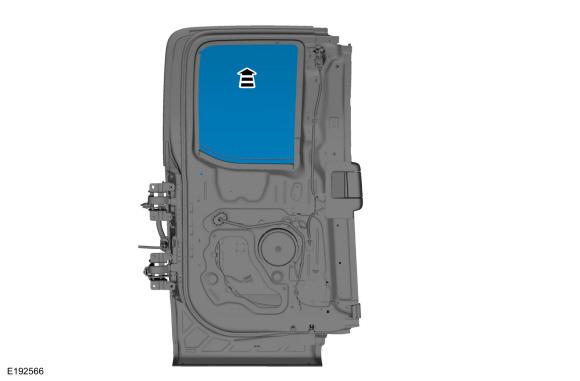

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear door window regulator and motor. Refer to: Rear Door Window Regulator and Motor - SuperCab, Vehicles With: Rear Power Windows .

2.

Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .

3.

Remove the aft rear door glass run and bracket.
Torque

: 93 lb.in (10.5 Nm)
