Rear Door Glass Top Run - SuperCab, Vehicles With: Rear Power Windows: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

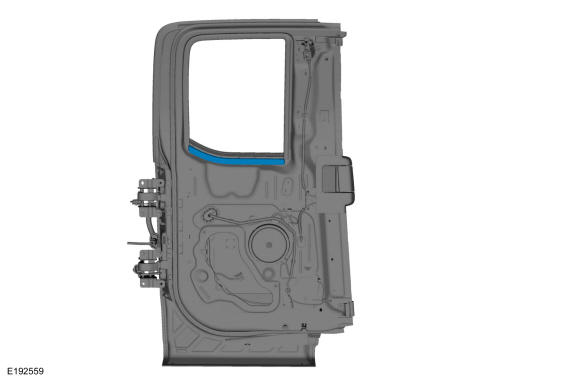

1.

Remove the rear door window regulator and motor. Refer to: Rear Door Window Regulator and Motor - SuperCab, Vehicles With: Rear Power Windows .

2.

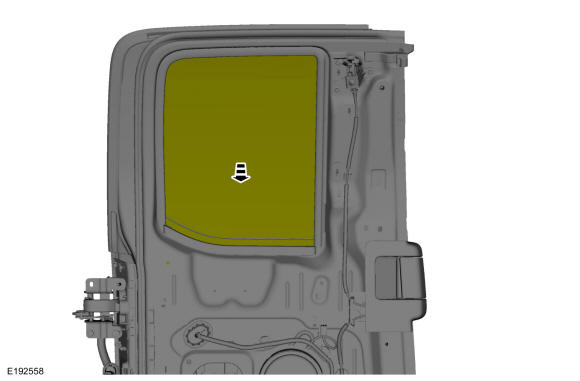

Lower the rear door window glass.

Courtesy of FORD MOTOR COMPANY

3.

Remove the inner belt moulding.

Courtesy of FORD MOTOR COMPANY

4.

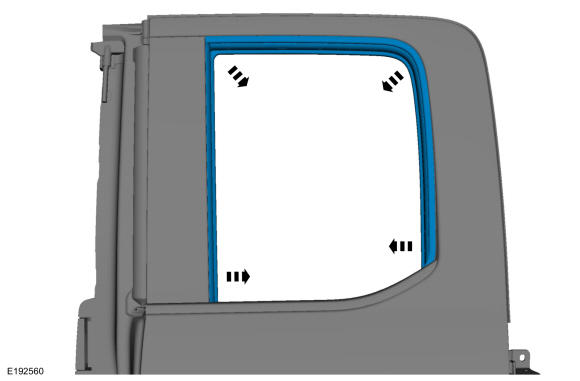

Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY
