Rear Door Glass Run and Bracket - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Aft rear door glass run and bracket

1.

Remove the rear door latch. Refer to: Rear Door Latch - SuperCrew .

2.

NOTE: This step is only necessary when installing a new component.

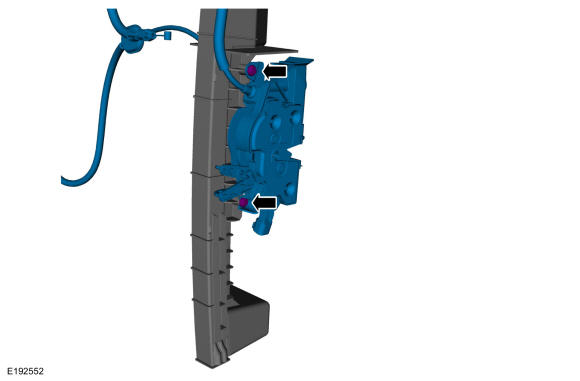

Remove the door latch from the aft rear door glass run and bracket.

Courtesy of FORD MOTOR COMPANY

Fore rear door glass run and bracket

3.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCrew .

4.

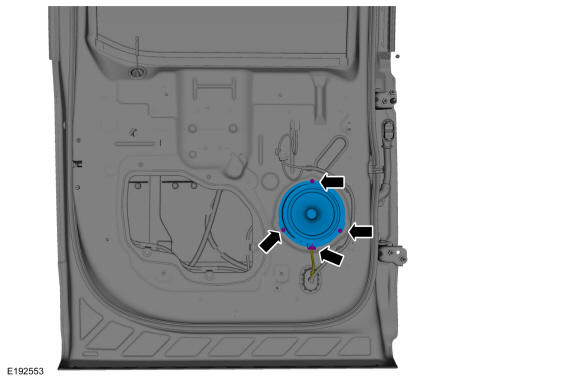

Remove the rear door speaker.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

5.

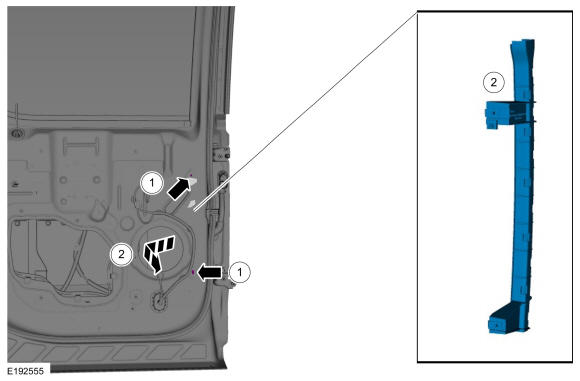

Remove the fore rear door glass run and bracket.
1. 1.

  Remove the fore rear door glass run and bracket bolts.
  Torque

  : 93 lb.in (10.5 Nm)
1. 2.

  Remove the fore rear door glass run and bracket.

Courtesy of FORD MOTOR COMPANY
