Rear Door Glass Run and Bracket - SuperCab, Vehicles With: Rear Power Windows: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Aft rear door glass run and bracket

1.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .

2.

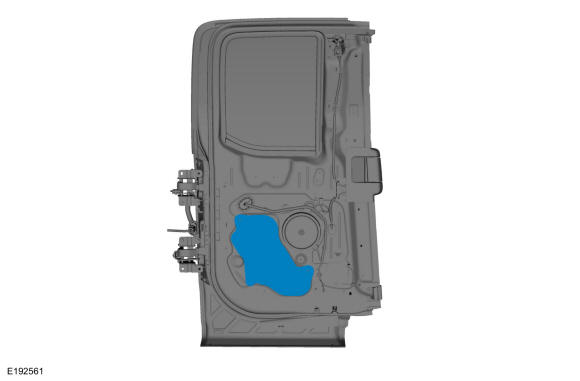

Remove the watershield.

GFD42519

Courtesy of FORD MOTOR COMPANY

3.

Remove the aft rear door glass run and bracket.
Torque

: 93 lb.in (10.5 Nm)

GFD43160

Courtesy of FORD MOTOR COMPANY

Fore rear door glass run and bracket

4.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .

5.

Remove the watershield.

GFD42519

Courtesy of FORD MOTOR COMPANY

6.

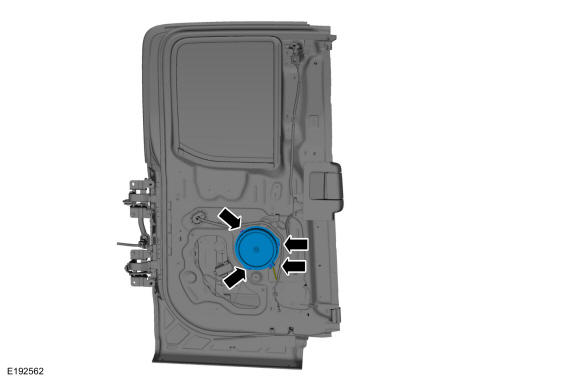

Remove the rear door speaker.
Torque

: 22 lb.in (2.5 Nm)

GFD43161

Courtesy of FORD MOTOR COMPANY

7.

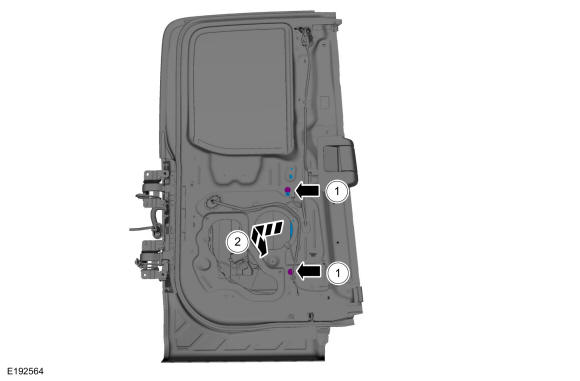

Remove the fore rear door glass run and bracket.
1. 1.

  Remove the fore rear door glass run and bracket bolts.
  Torque

  : 93 lb.in (10.5 Nm)
1. 2.

  Remove the fore rear door glass run and bracket.

GFD43162

Courtesy of FORD MOTOR COMPANY
