Image Processing Module A (IPMA) Camera Heated Windshield Element: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.
Clean and remove any residual adhesive from the windshield.
- 2.

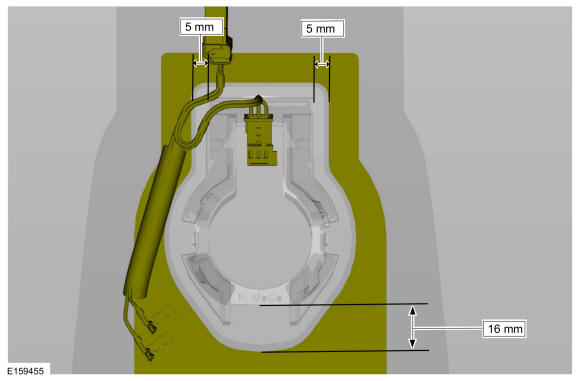

Remove the protective covering from the new camera windshield defrost heater and align the camera windshield defrost heater.

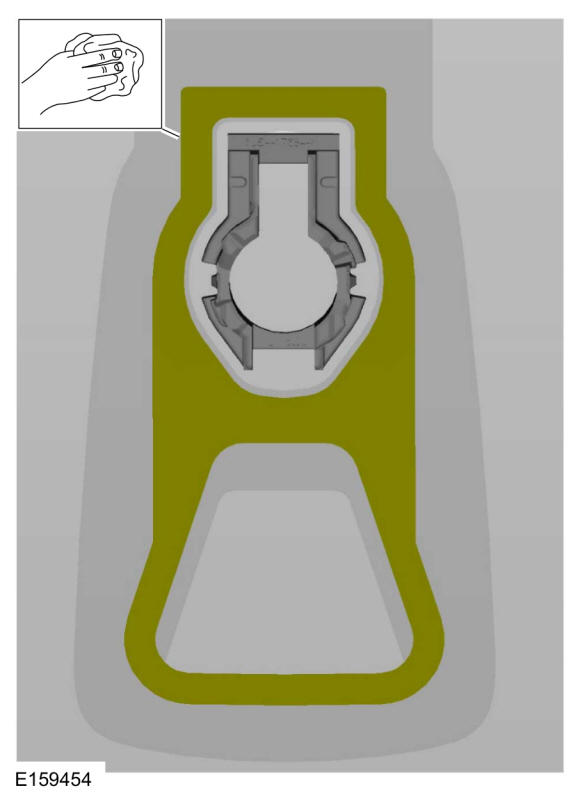

- 3.NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.
Install the IPMA camera heated windshield element.
- 4.
Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
