Front Door Window Control Switch - Vehicles With: Front Power Windows: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both doors

1.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

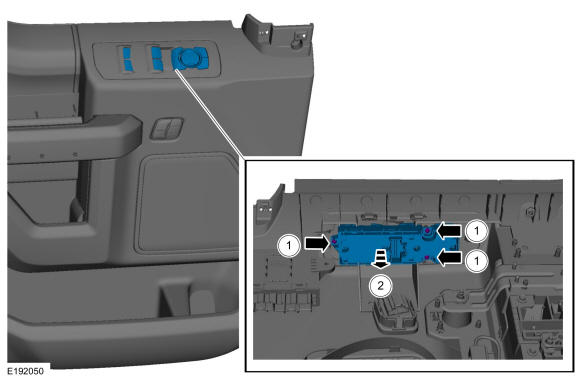

Driver door

2.

Remove the front door window control switch.
1. 1.

  Remove the front door window control switch screws.
1. 2.

  Remove the front door window control switch from the door trim panel.

GFD43140

Courtesy of FORD MOTOR COMPANY

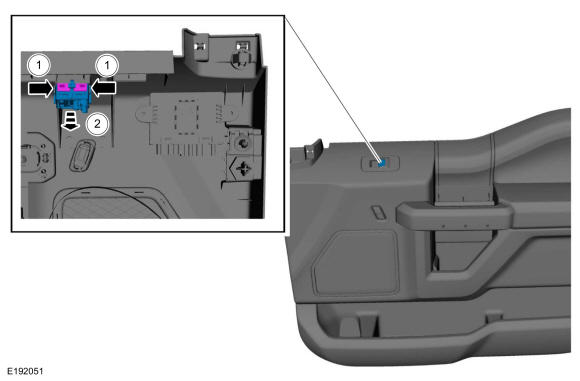

Passenger door

3.

Remove the front door window control switch.
1. 1.

  Release the front door window control switch retaining clips.
1. 2.

  Remove the front door window control switch from the door trim panel.

GFD43141

Courtesy of FORD MOTOR COMPANY
