Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.

  1. 1.

    Lower the front door glass to full down position.
GFD43137Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the front door trim panel. Refer to: Front Door Trim Panel .

  1. 3.

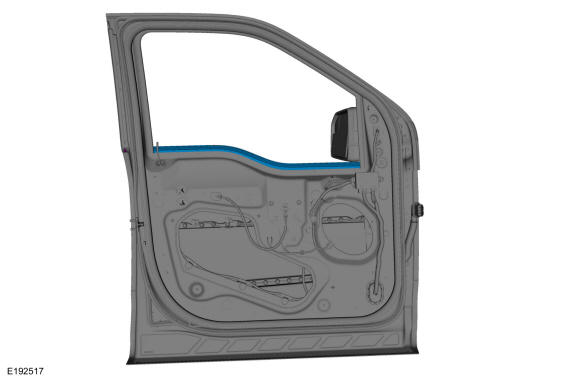

    Remove the inner belt moulding.
GFD43138Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the front door glass top run.
GFD43139Courtesy of FORD MOTOR COMPANY
