Center Registers: Removal

All vehicles

1. 1.

   Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .

Vehicles equipped with floor console

1. 2.

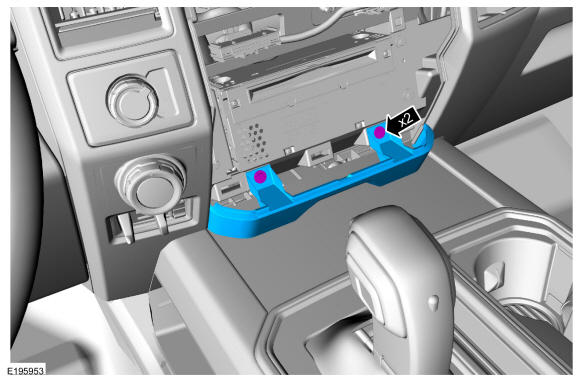

   Remove the screws and the center instrument panel lower finish panel.

Courtesy of FORD MOTOR COMPANY

Vehicles without floor Console

1. 3.

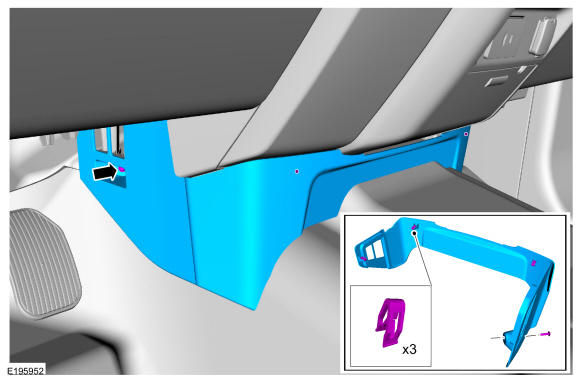

   Remove the screw, detach the clips and remove the center instrument panel lower finish panel.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with floor console

1. 4.

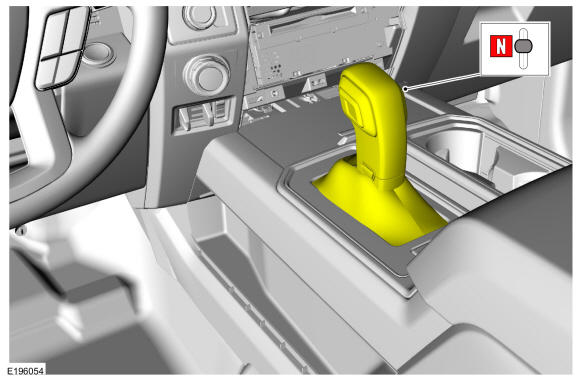

   Place the transmission selector lever in the NEUTRAL position.

Courtesy of FORD MOTOR COMPANY

1. 5.

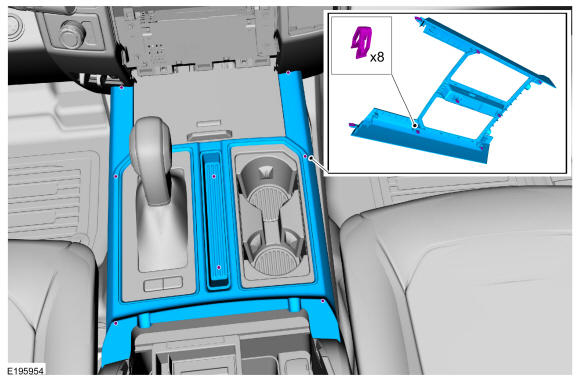

   Detach the clips and remove the floor console upper finish panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 6.

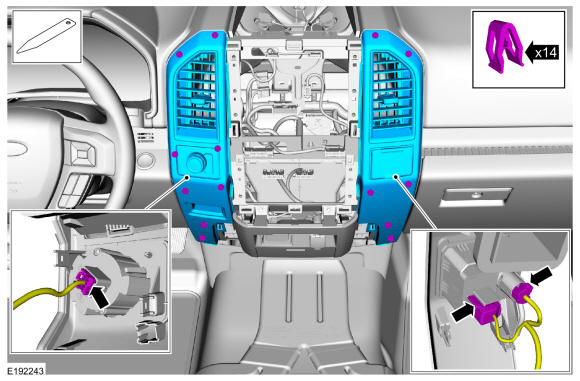

   NOTE: Vehicle with floor console shown, without floor console similar.

   Release the clips, remove the instrument panel center finish panels and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
