Air Conditioning (A/C) Clutch Air Gap Adjustment
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| 412-134 Holding Tool, Compressor Clutch TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2 | |
|---|---|
Activation
- 1.

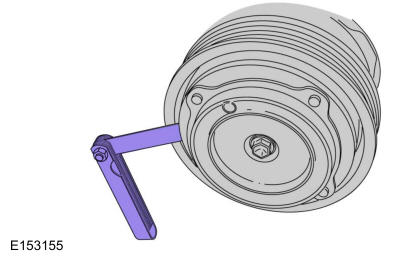

Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley. Refer to: Specifications .
- 2.

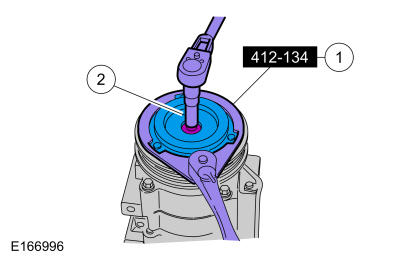

Remove the A/C clutch disc and bolt. Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification. Refer to: Specifications . Use Special Service Tool: 412-134 Holding Tool, Compressor Clutch.
