Fuel Tank: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

3.

Drain the fuel tank. Refer to: FUEL TANK DRAINING .

4.

If equipped, remove the nuts and the skid plate.

Courtesy of FORD MOTOR COMPANY

5.

Disconnect the fuel feed and vapor tube quick release couplings. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

6.

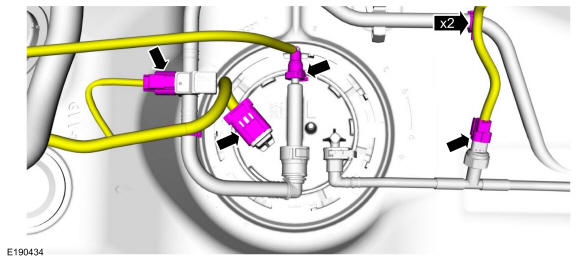

- Disconnect the fuel tank filler pipe vent tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
- Disconnect the electrical connectors and release the harness retainer clip.

Courtesy of FORD MOTOR COMPANY

7.

Using a powertrain lift, support the fuel tank.
Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

8.
- Remove the bolts.
  Torque

  : 30 lb.ft (40 Nm)
- Position aside the fuel tanks straps and remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
