Fuel Tank Filler Pipe: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.

Remove the rear driveshaft. Refer to: Rear Driveshaft .

4.

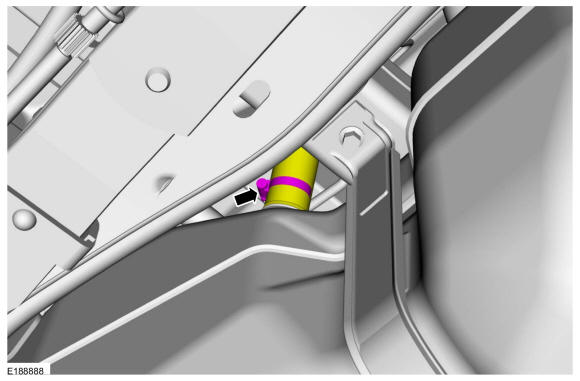

Release the clamp and position the fuel filler pipe hose aside.

GFD42104

Courtesy of FORD MOTOR COMPANY

5.

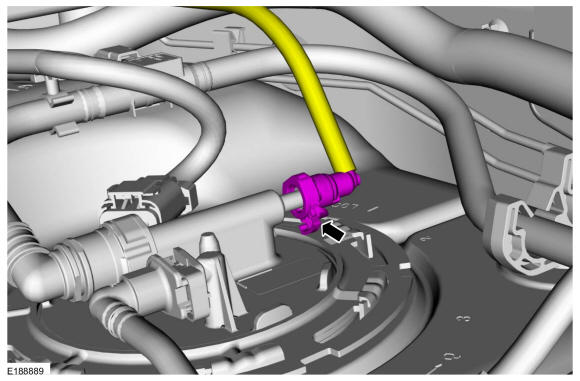

Disconnect the fuel tank filler pipe vapor tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

GFD42105

Courtesy of FORD MOTOR COMPANY

6.

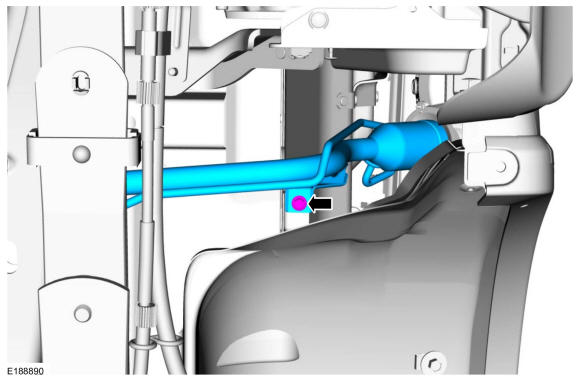

Remove the bolt and the fuel tank filler pipe.
Torque

: 133 lb.in (15 Nm)

GFD42106

Courtesy of FORD MOTOR COMPANY
