Fuel Lines: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

3.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

4.

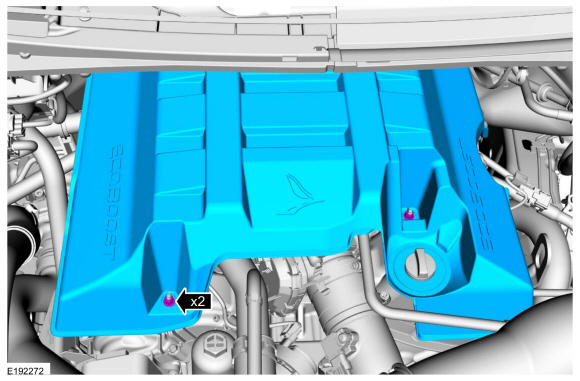

Remove nuts and the engine appearance cover.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

5.

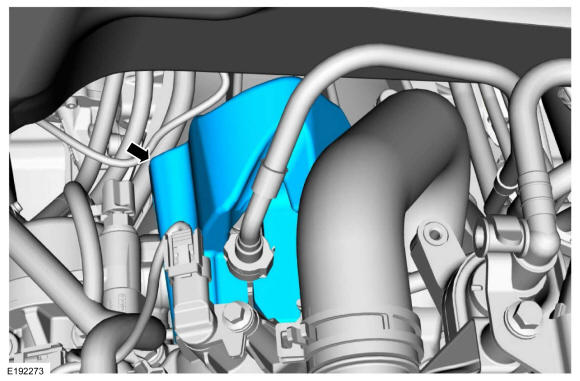

Remove the High Pressure Fuel Pump noise insulator.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

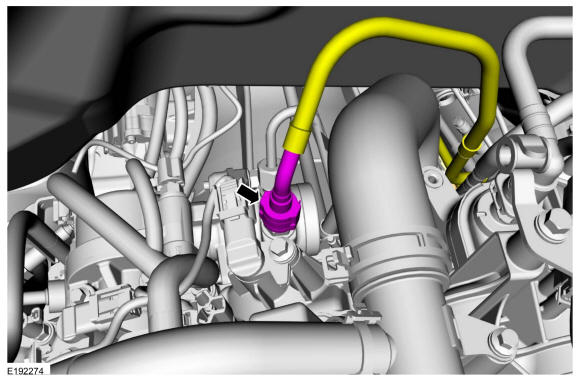

Disconnect the fuel supply line-to-high pressure pump quick release coupling. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

7.

Remove the bolts and the splash shield.

Courtesy of FORD MOTOR COMPANY

8.

Separate fuel supply line from the bracket on the upper transmission bell housing.

Courtesy of FORD MOTOR COMPANY

9.

Release the retainer clip on the rear of the transmission and position aside the fuel line.

Courtesy of FORD MOTOR COMPANY

10.
- Disconnect the front fuel supply tube-to-fuel tank fuel supply tube quick connect coupling. Refer to: QUICK RELEASE COUPLING .
- Release the retainer clips.
- Remove the fuel feed line from the bottom of the vehicle.

Courtesy of FORD MOTOR COMPANY
