Catalytic Converter RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Clean all exhaust connections before reassembly.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Remove the LH catalytic converter. Refer to: Catalytic Converter LH .

  1. 3.

    Remove the muffler inlet pipe. Refer to: Muffler Inlet Pipe .

  1. 4.

    Remove the transmission support insulator. Refer to: Transmission Support Insulator .

  1. 5.

    Disconnect the HO2S electrical connector.
GFD41242Courtesy of FORD MOTOR COMPANY

  1. 6.

    Disconnect the catalyst monitor sensor electrical connector.
GFD41452Courtesy of FORD MOTOR COMPANY

  1. 7.

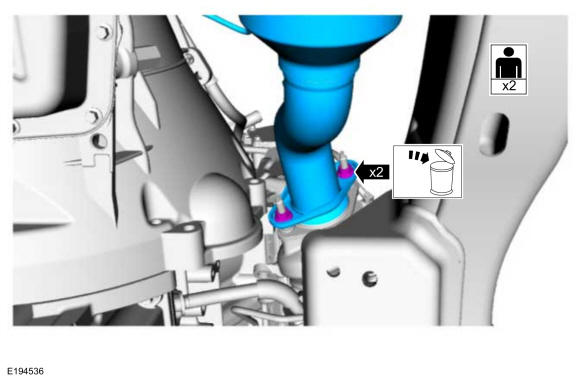

    Remove the RH catalytic converter nuts and discard. Remove the RH catalytic converter.
GFD41453Courtesy of FORD MOTOR COMPANY
